Honda CBR1100XX Blackbird 1997–2007 Stainless Steel Front Mudguard Bolt Kit with Nuts
£14.99
4x stainless steel front mudguard bolts and 2x stainless steel nuts, including 2x OEM-style 15 mm-head dimpled shoulder bolts. For Honda CBR1100XX Blackbird 1997–2007. Mudguard, fork components and other bodywork fixings are not included.
Also included: 1x Biker Bling anti-seize compound pack (7 g).
83 in stock
Free UK delivery for orders sent to a UK address.
Returns: UK consumers buying online can normally cancel within 14 days of receiving goods and return them within a further 14 days. Read our returns policy.
Stainless Steel Front Mudguard Bolt Kit with Nuts for Honda CBR1100XX Blackbird
4x stainless steel front mudguard bolts and 2x stainless steel nuts, including 2x OEM-style 15 mm-head dimpled shoulder bolts. For the original mounting arrangement on the Honda CBR1100XX Blackbird 1997–2007.
Close OEM-style fit and appearance
The replacement bolts match the original fixing dimensions and head sizes for their intended positions. The 90113-MAT-000 replacements have the matching 15 mm head diameter, shoulder dimensions, Allen-key fitting and dimpled head-face detail. The other two bolts and the nuts belong at their separate original mountings.
These are Biker Bling aftermarket replacements, not genuine Honda-branded parts. Honda references identify the original components being replaced.

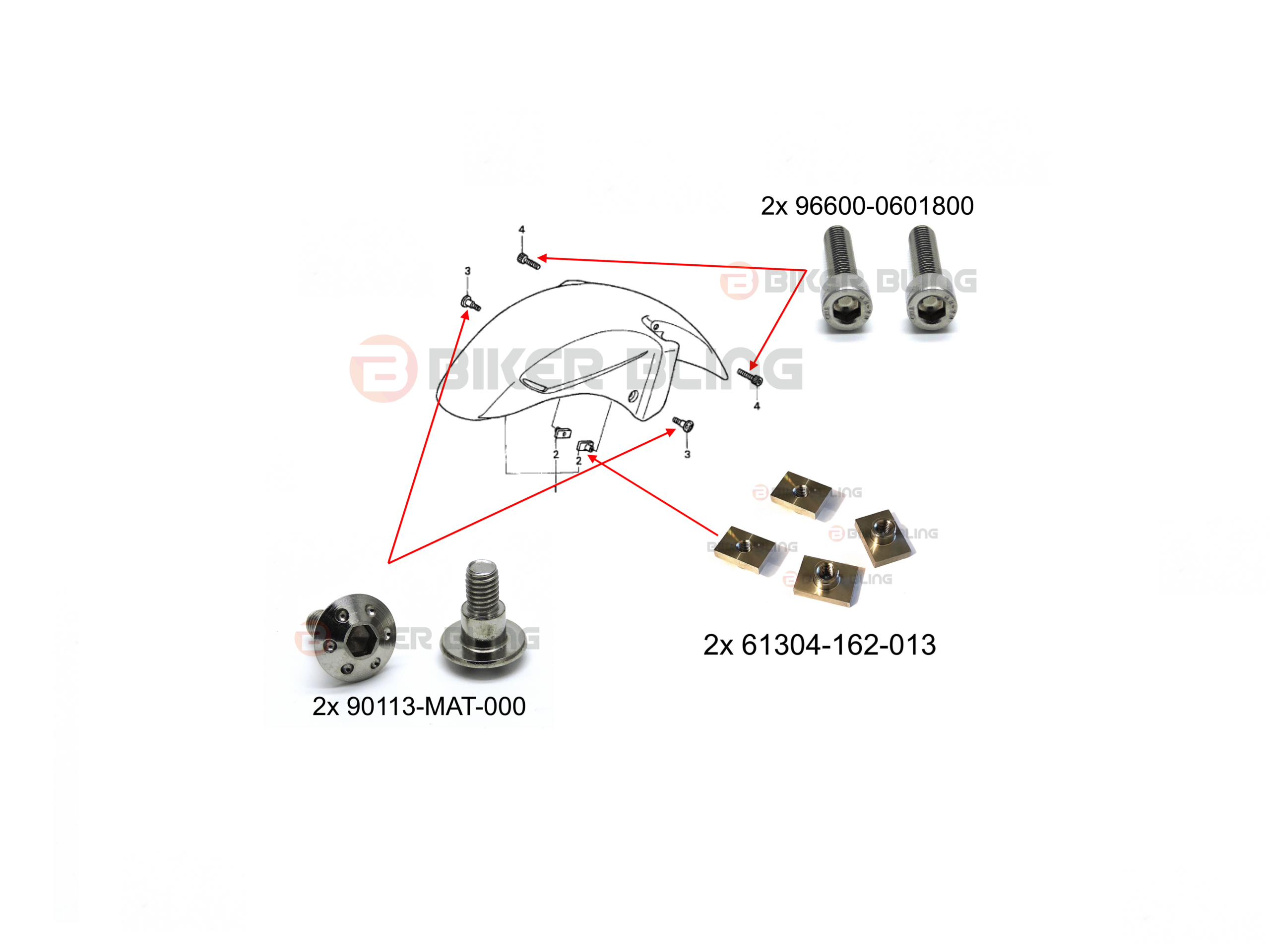

What you receive
- 2x front mudguard shoulder bolts — replacement for 90113-MAT-000.
- 2x front mudguard bolts — replacement for 96600-06018-00.
- 2x front mudguard nuts — replacement for 61304-162-013.
- 1x Biker Bling anti-seize compound pack (7 g).
Original Honda fixing references
| Fitting position / component | Kit quantity | Honda reference |
|---|---|---|
| Front mudguard shoulder bolts | 2x | 90113-MAT-000 |
| Front mudguard bolts | 2x | 96600-06018-00 |
| Front mudguard nuts | 2x | 61304-162-013 |
Important fitment notes
- For Honda CBR1100XX Blackbird 1997–2007 with the original components at the listed positions.
- Check the original reference and fitting arrangement, especially with aftermarket screens, panels or modified components.
- Mudguard, fork components and other bodywork fixings are not included.
When should you replace these fixings?
Inspect fixings when removing the relevant component. Replace missing hardware or damaged heads, threads, clips or rubber fittings with the correct type. New fixings cannot repair cracked panels, enlarged holes or damaged mounting threads.
Fitting information
Match each fixing to its intended position and start threaded fasteners by hand. Align the components before tightening; do not use a bolt to pull a misaligned panel into place. Follow Honda’s instructions and avoid overtightening plastic or rubber mountings. Use anti-seize only where the applicable procedure permits it. Check the fitted components are properly seated and secure.
For general background, read our guide to fitting motorcycle fairing bolts. Honda’s workshop procedure takes precedence.
Customer questions
Are all four bolts the same?
No. There are two shouldered 90113-MAT-000 replacements and two 96600-06018-00 replacements, plus two nuts.
| Weight | 430 g |
|---|
1 review for Honda CBR1100XX Blackbird 1997–2007 Stainless Steel Front Mudguard Bolt Kit with Nuts
Only logged in customers who have purchased this product may leave a review.
Antonio Zaballos Ramon (verified owner) –
Muy profesionales y muy buen producto,un 10..
