Stainless Steel Fairing Bolt Kit with Hook Bolts for Honda CBR1100XX Blackbird

Model-specific stainless steel fairing bolts with OEM-matching dimensions and head sizes, including 22 mm and 15 mm dimpled heads, plus the listed nuts, clips and washers. For the original mounting arrangement on the Honda CBR1100XX Blackbird 1997–2007.

Why choose an OEM-style Blackbird fairing bolt kit?

When comparing this kit with a universal fairing bolt assortment, check more than the thread size. The Blackbird uses different head diameters, shoulder dimensions and fitting types across its bodywork. This Biker Bling kit follows the original mounting positions with the corresponding bolt dimensions, head sizes and Allen-key fittings.

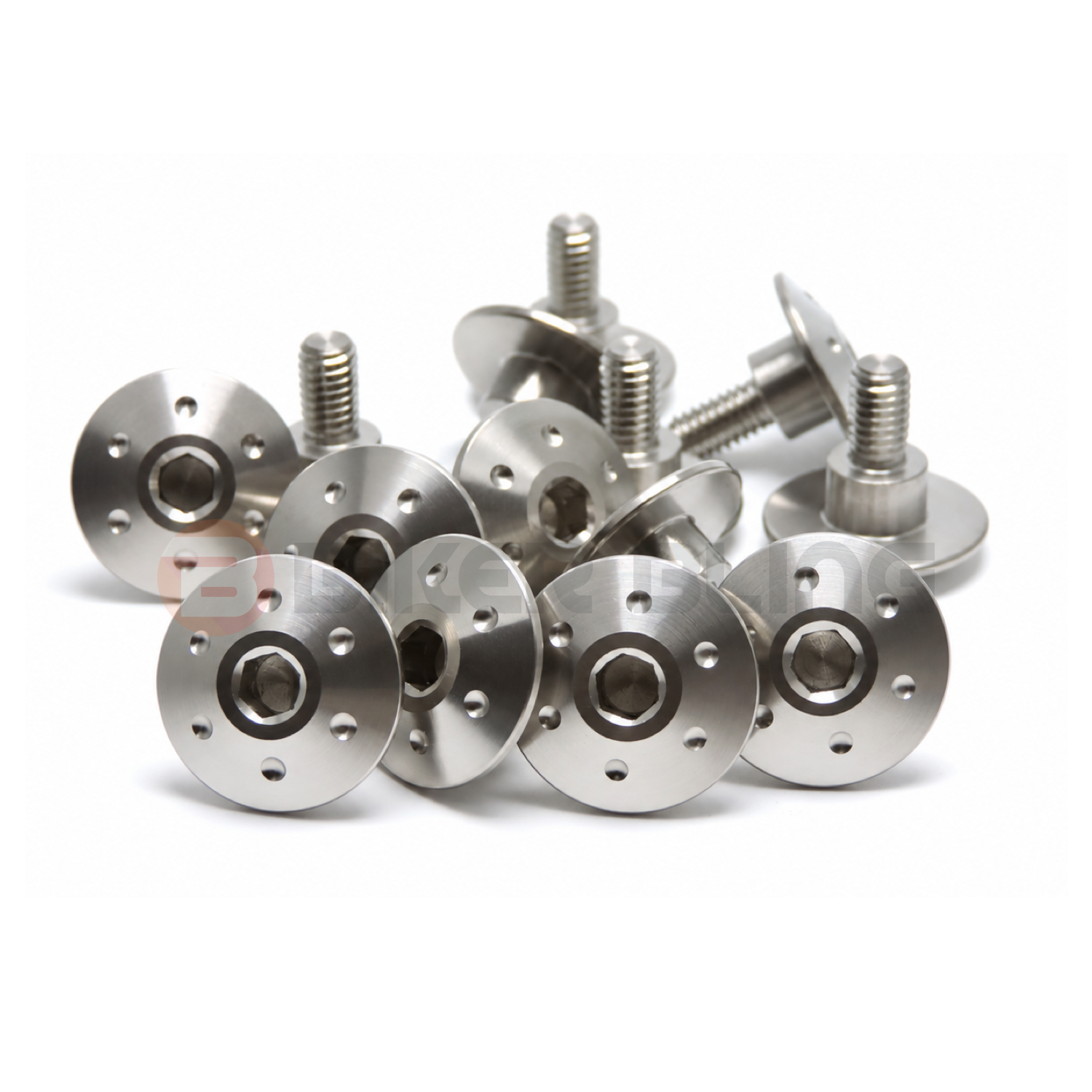

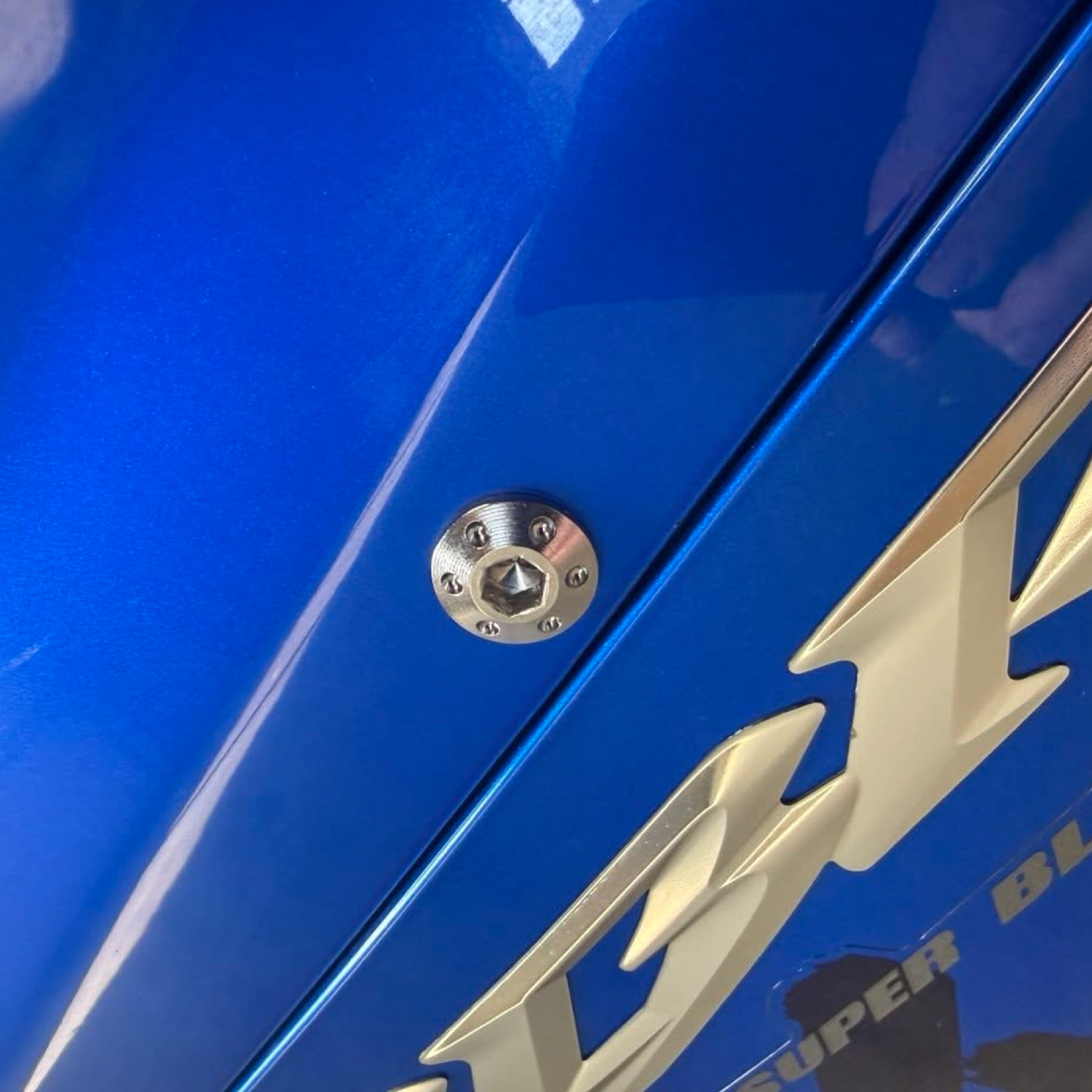

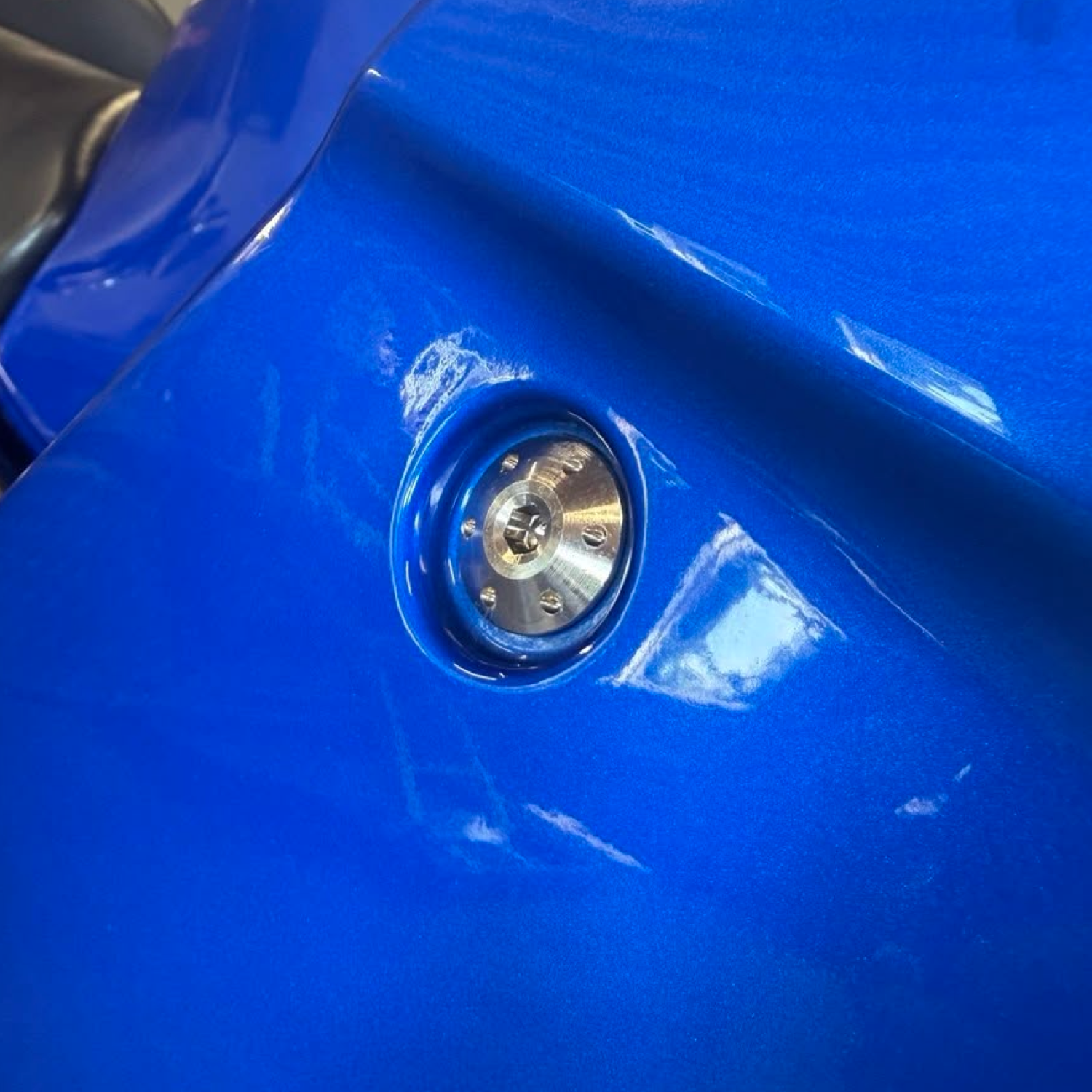

The 90112-MAT-000 replacements have the original-style 22 mm dimpled heads, while the 90113-MAT-000 replacements have 15 mm dimpled heads. Matching these details helps retain the factory fixing appearance when replacing the original bolts with stainless steel.

Close OEM-style fit and appearance

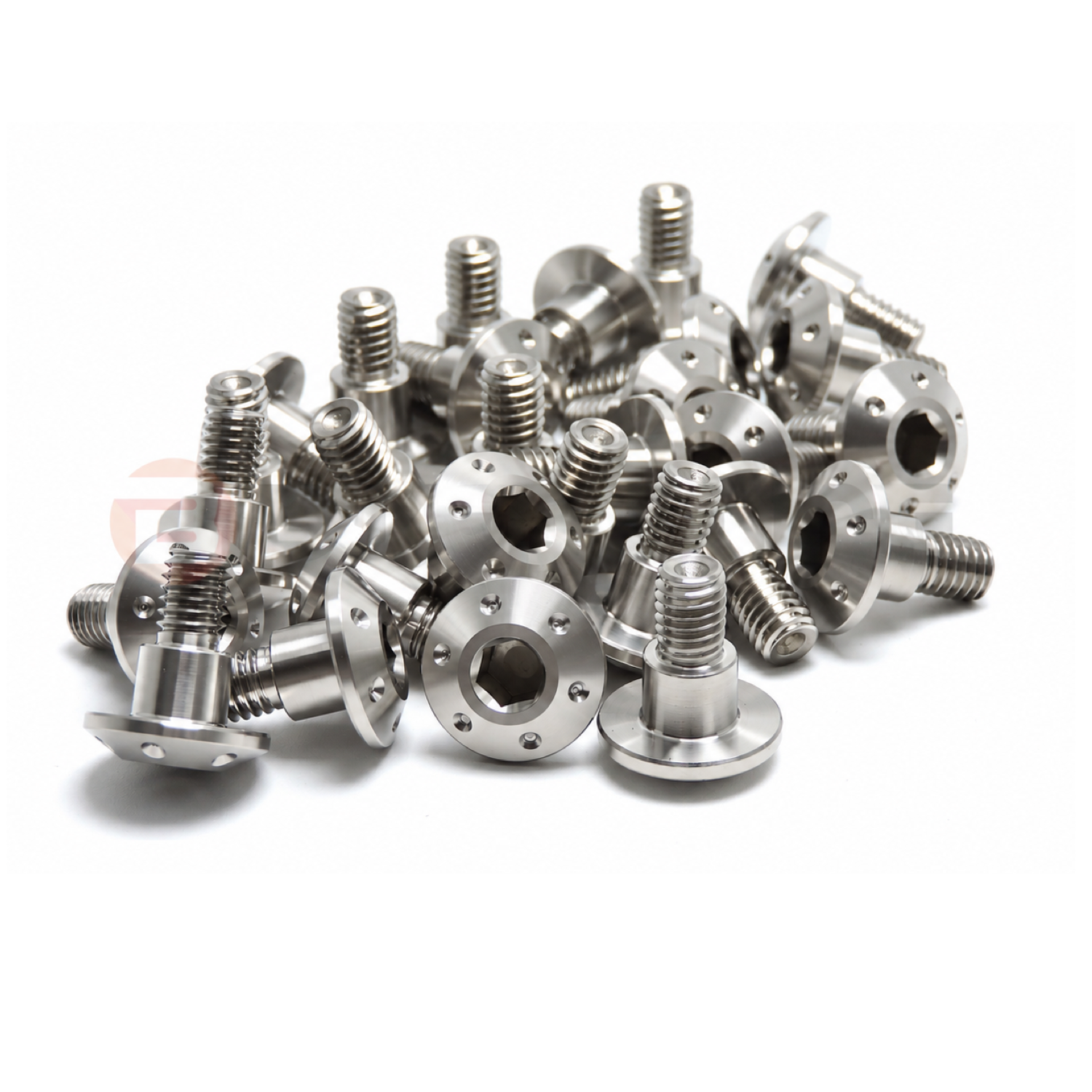

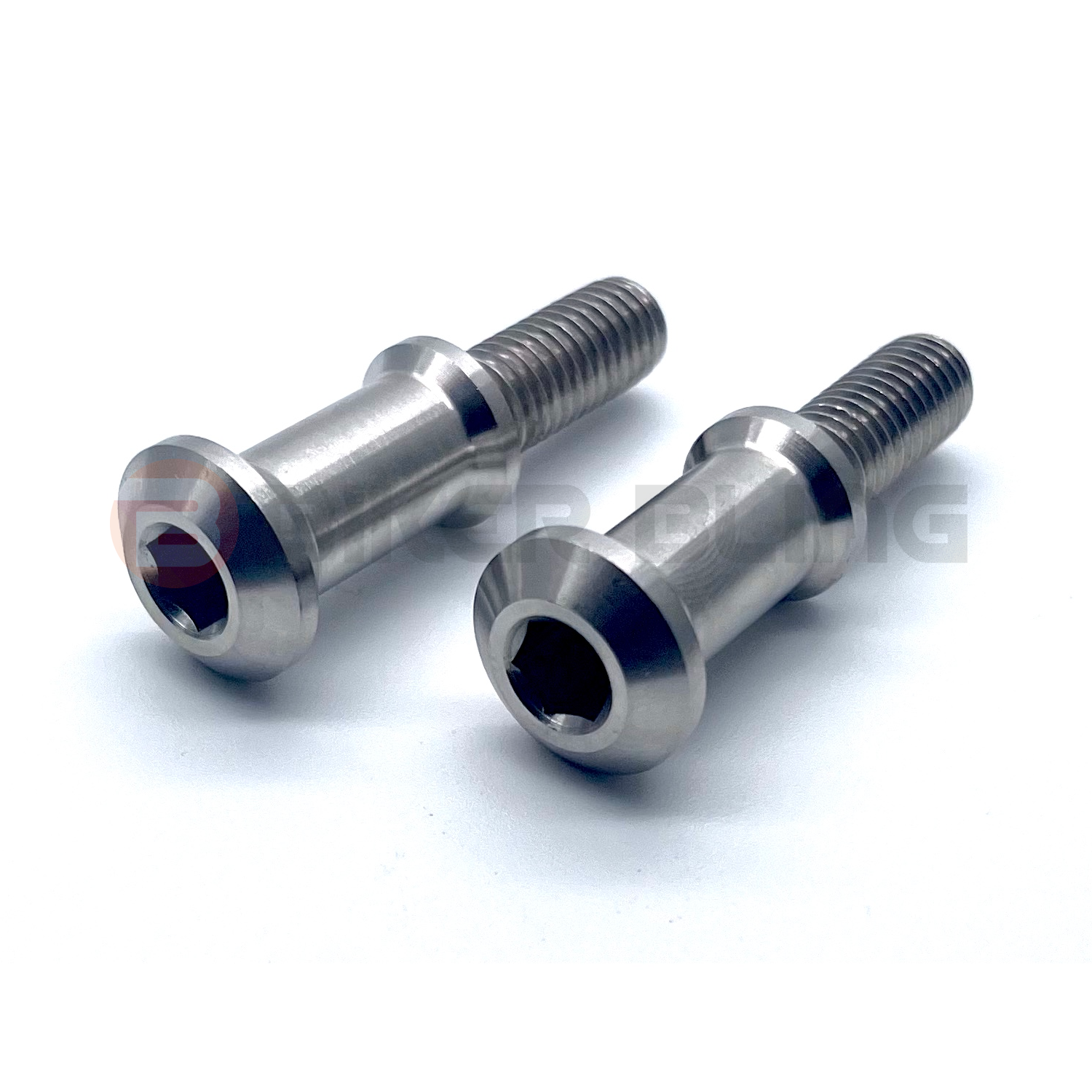

The supplied shoulder bolts match the original shoulder length and diameter, as well as the head size and Allen-key fitting. Each fixing type belongs at its listed mounting position; the kit is not an assortment of interchangeable bolts. This kit includes the hook bolts and washers listed below; the rubber well nuts and plastic clips retain their respective materials.

These are Biker Bling aftermarket replacements, not genuine Honda-branded parts. Honda references identify the original components being replaced.

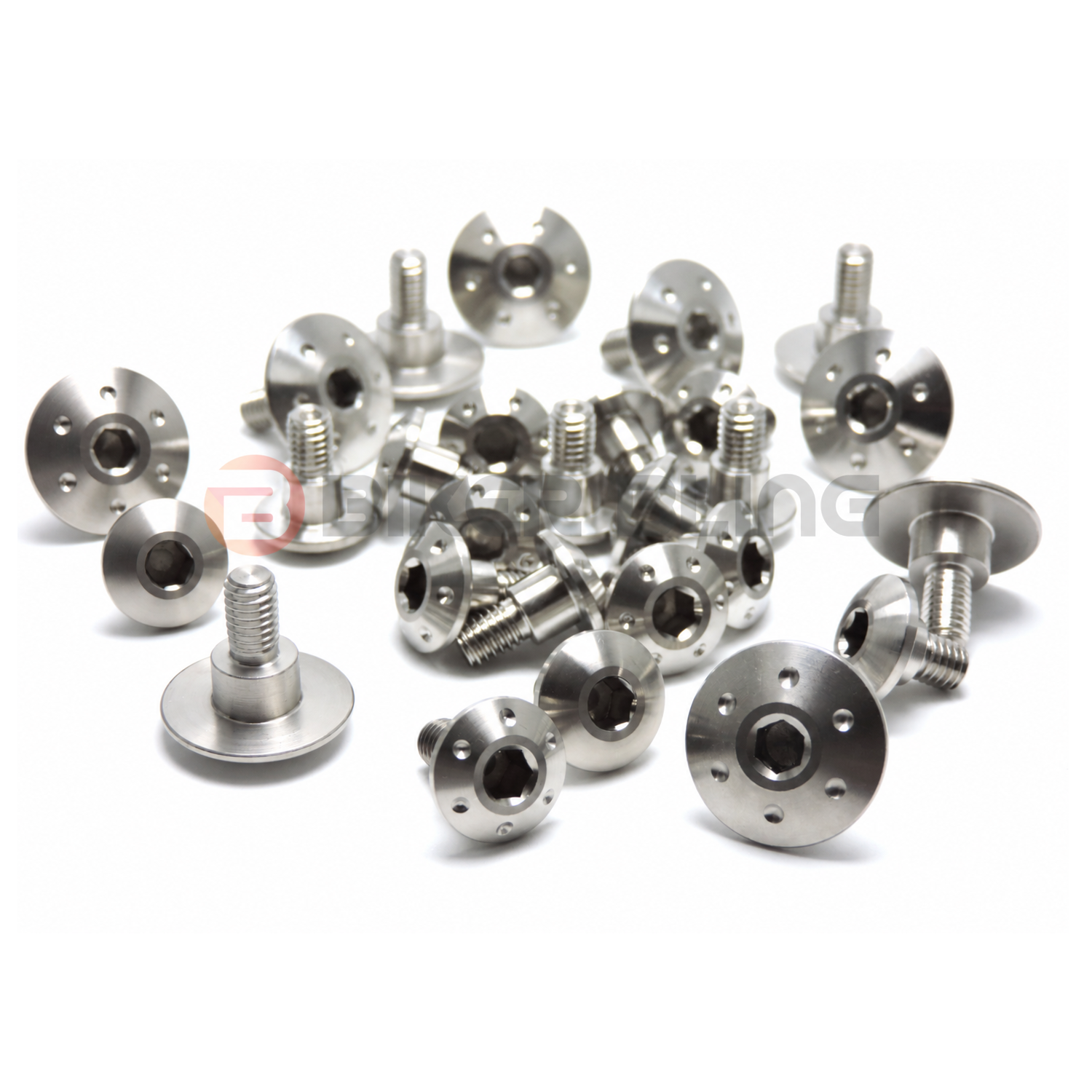

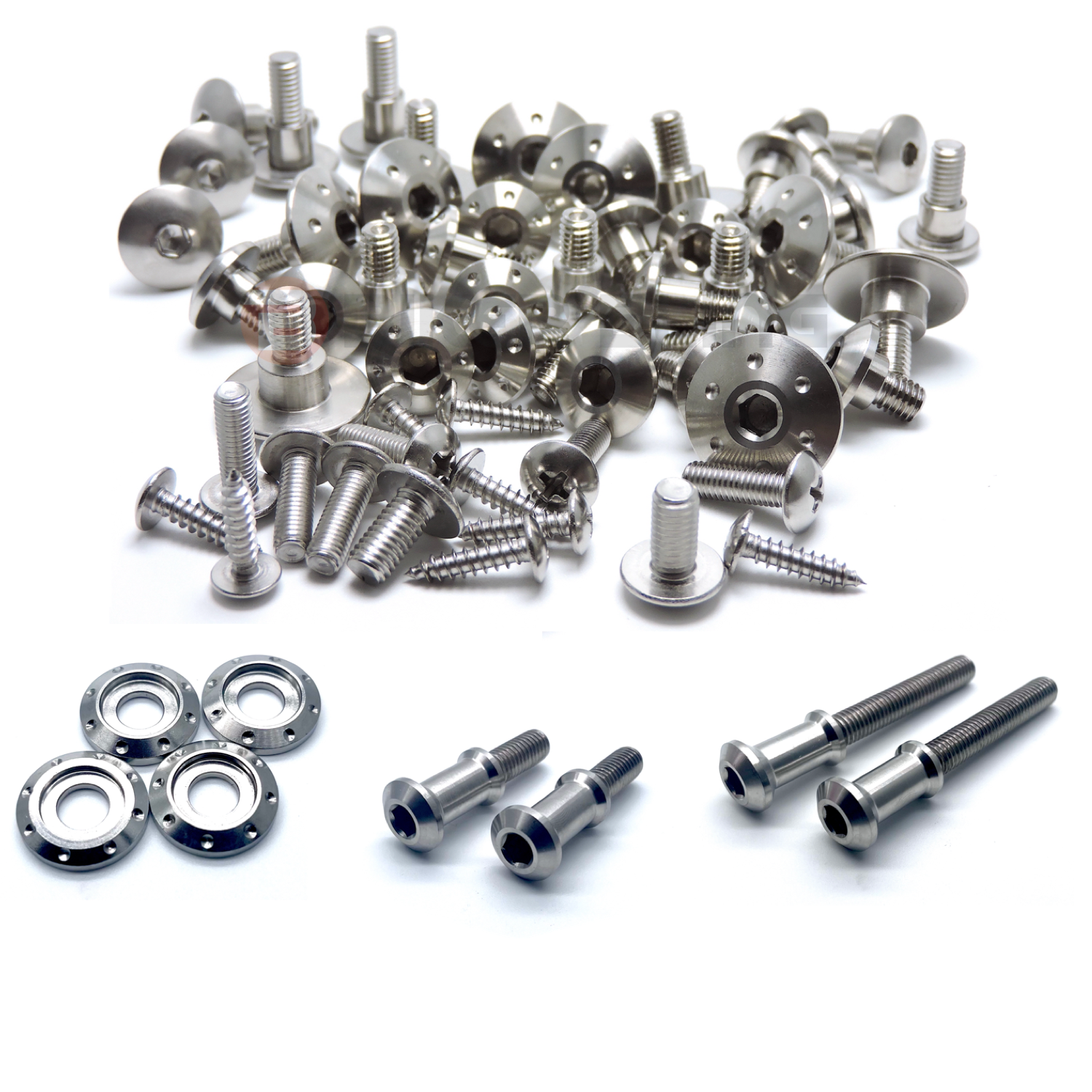

What you receive

The tables below show the supplied quantities and the original Honda references for each fitting area. These are aftermarket replacements, not genuine Honda parts.

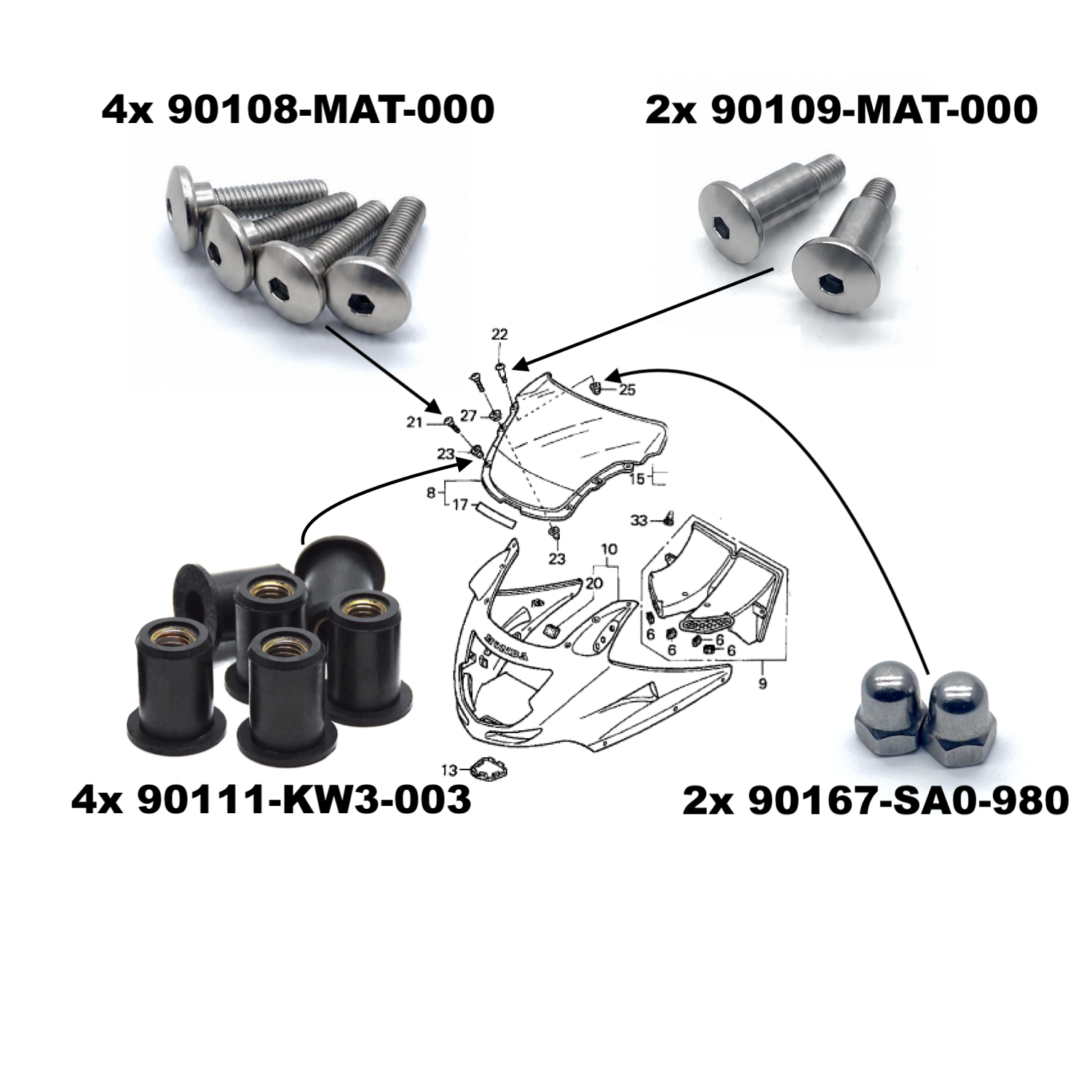

Windscreen

Component	Kit quantity	Honda reference
Shoulder bolts	2x	90109-MAT-000
Shoulder bolts	4x	90108-MAT-000
Rubber well nuts	4x	90111-KW3-003
Metal nuts	2x	90167-SA0-980

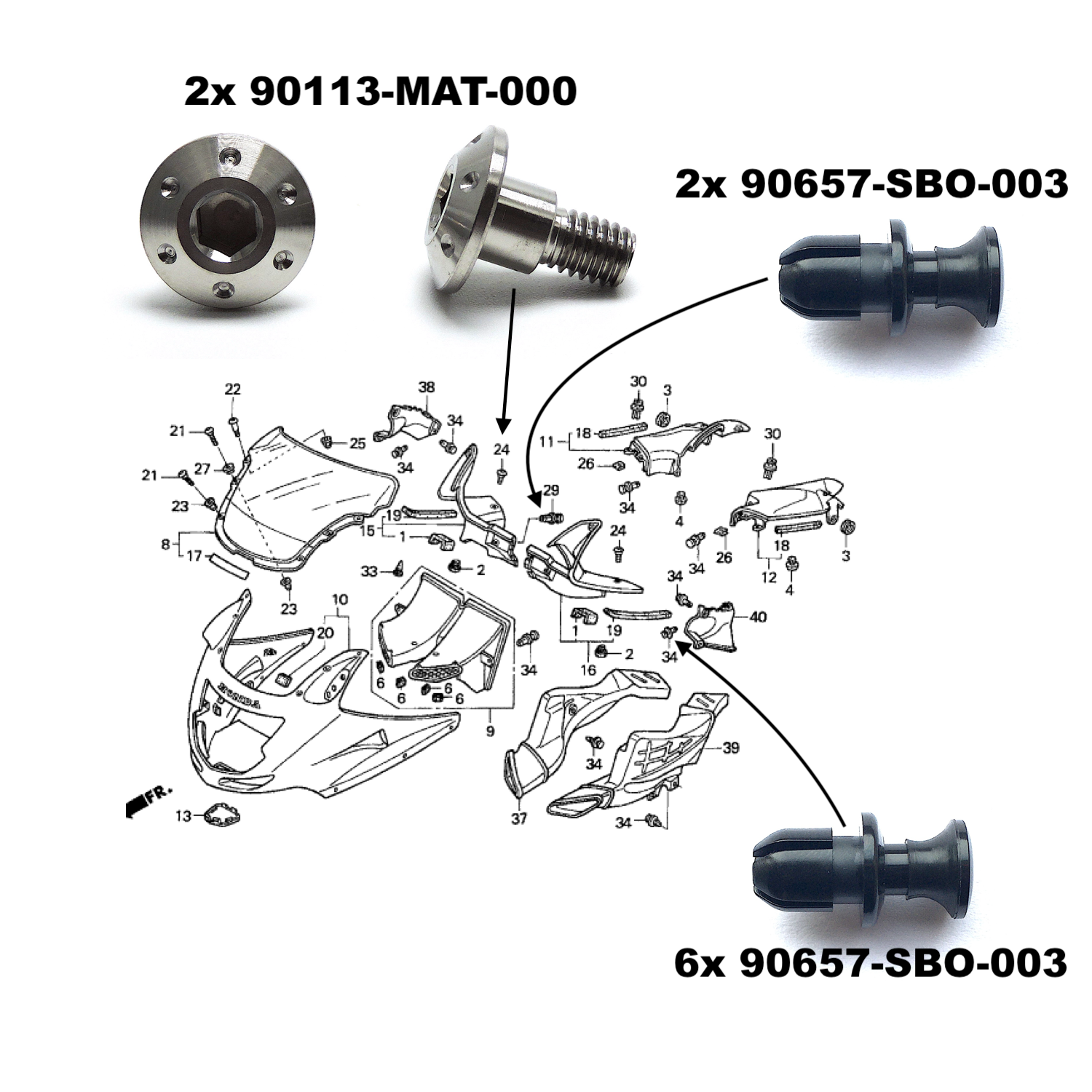

Nose cone

Component	Kit quantity	Honda reference

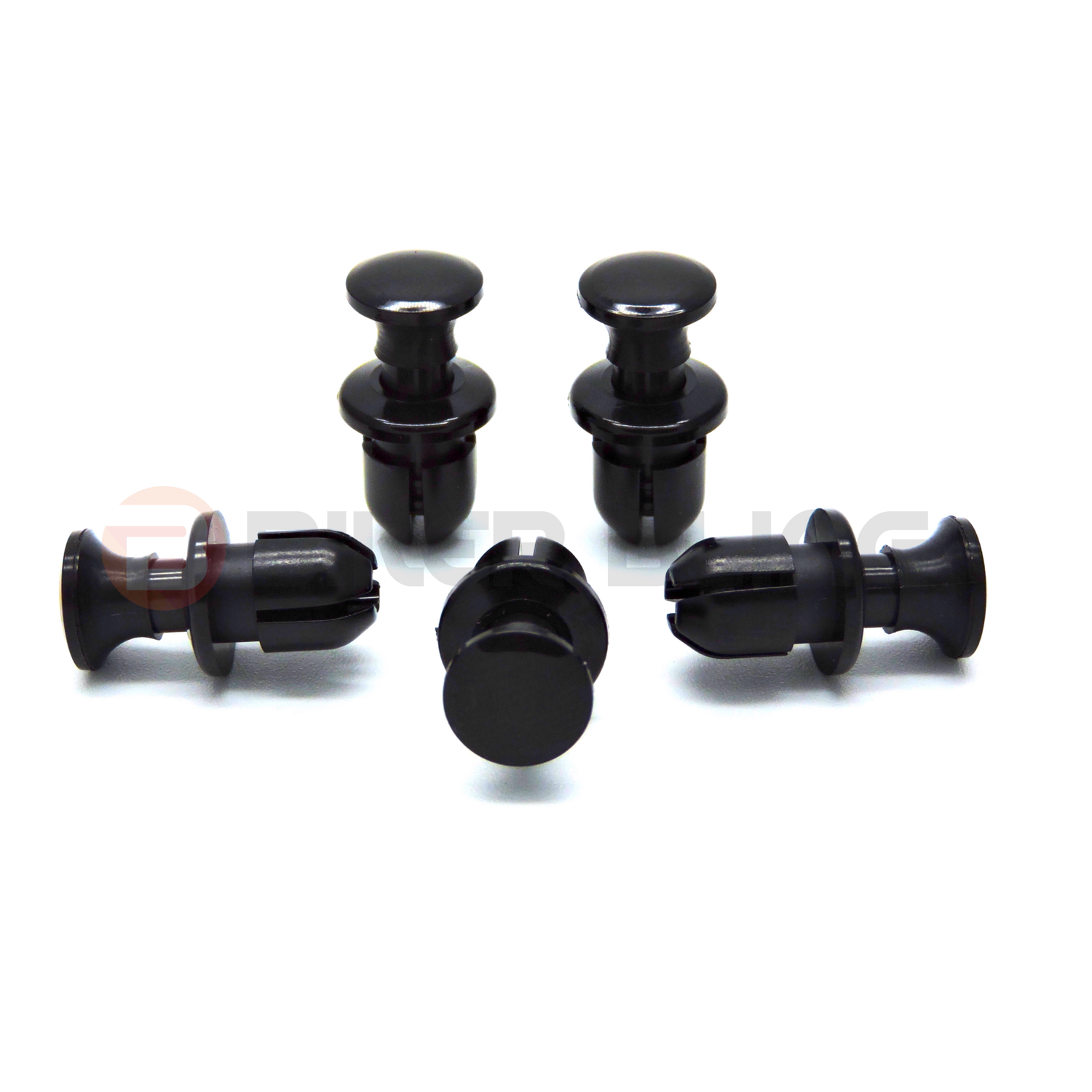

Plastic clips	6x	91549-MW0-790ZA
Plastic clips	2x	90657-SB0-003

Infill panel

Component	Kit quantity	Honda reference
Shoulder bolts	2x	90113-MAT-000

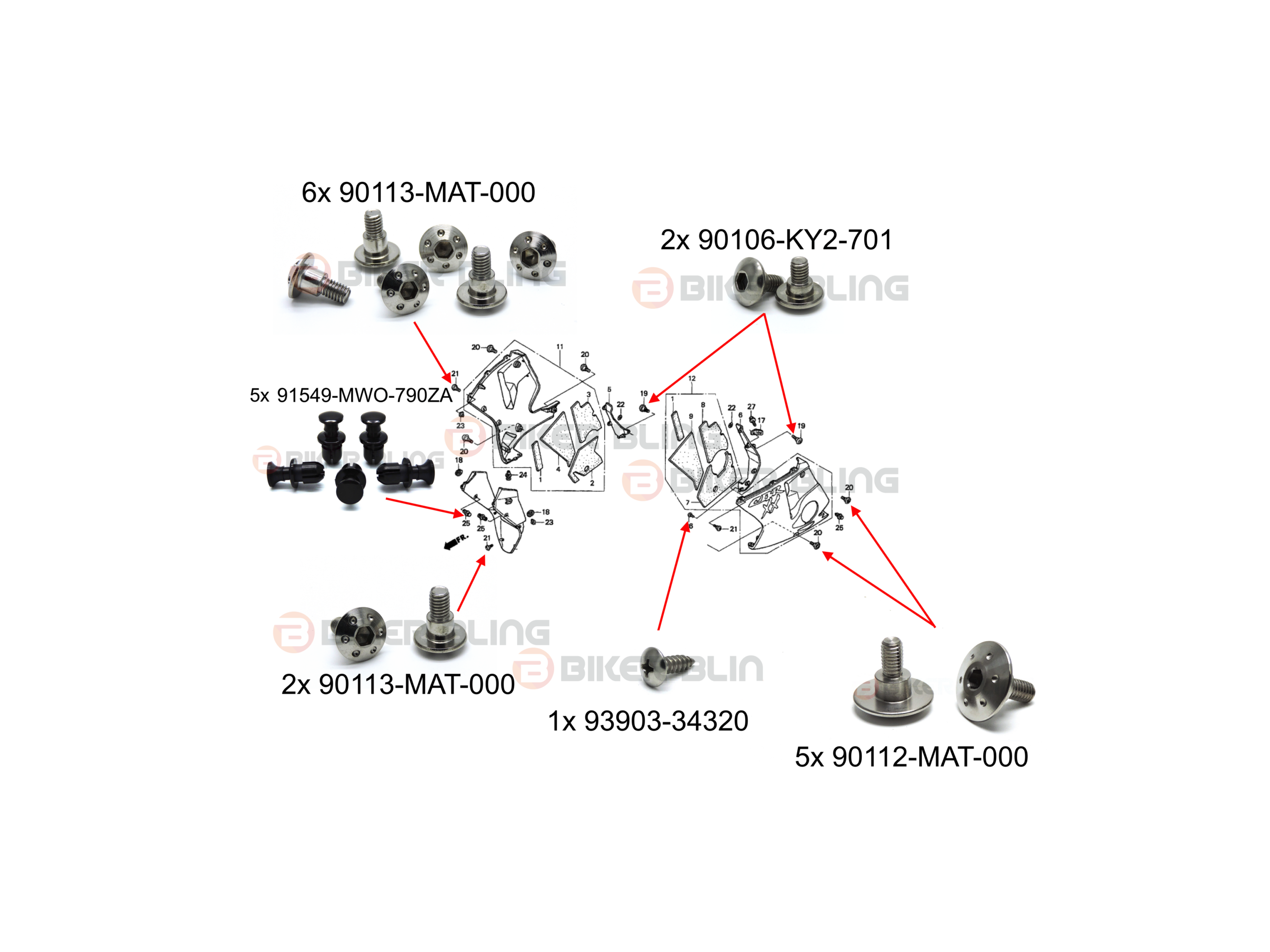

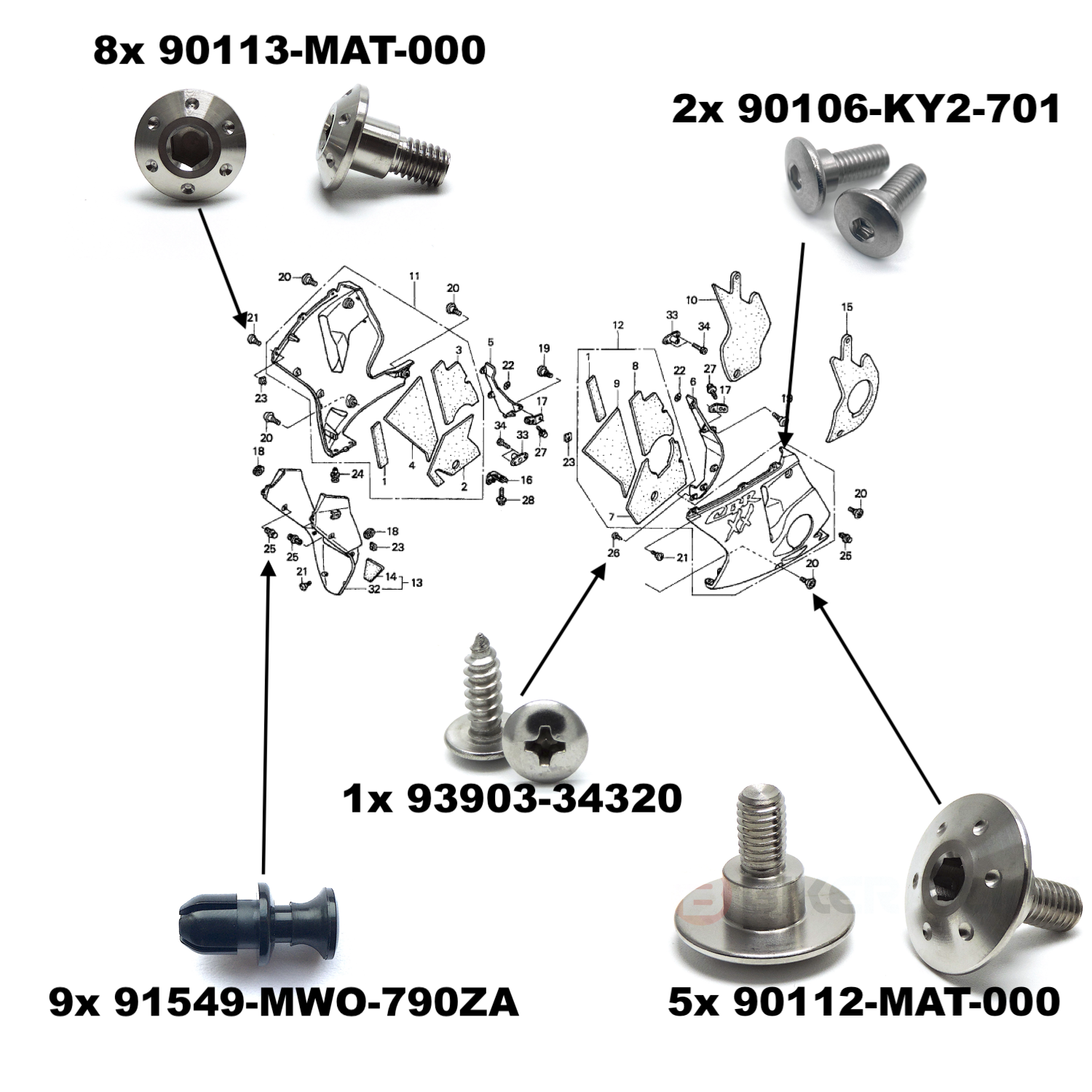

Front fairing

Component	Kit quantity	Honda reference
Shoulder bolts	5x	90112-MAT-000
Shoulder bolts	2x	90113-MAT-000
Shoulder bolts	2x	90106-KY2-701
Plastic clips	7x	91549-MW0-790ZA
Plastic clips	2x	90657-SB0-003
Self-tapping fixing	1x	93903-34320

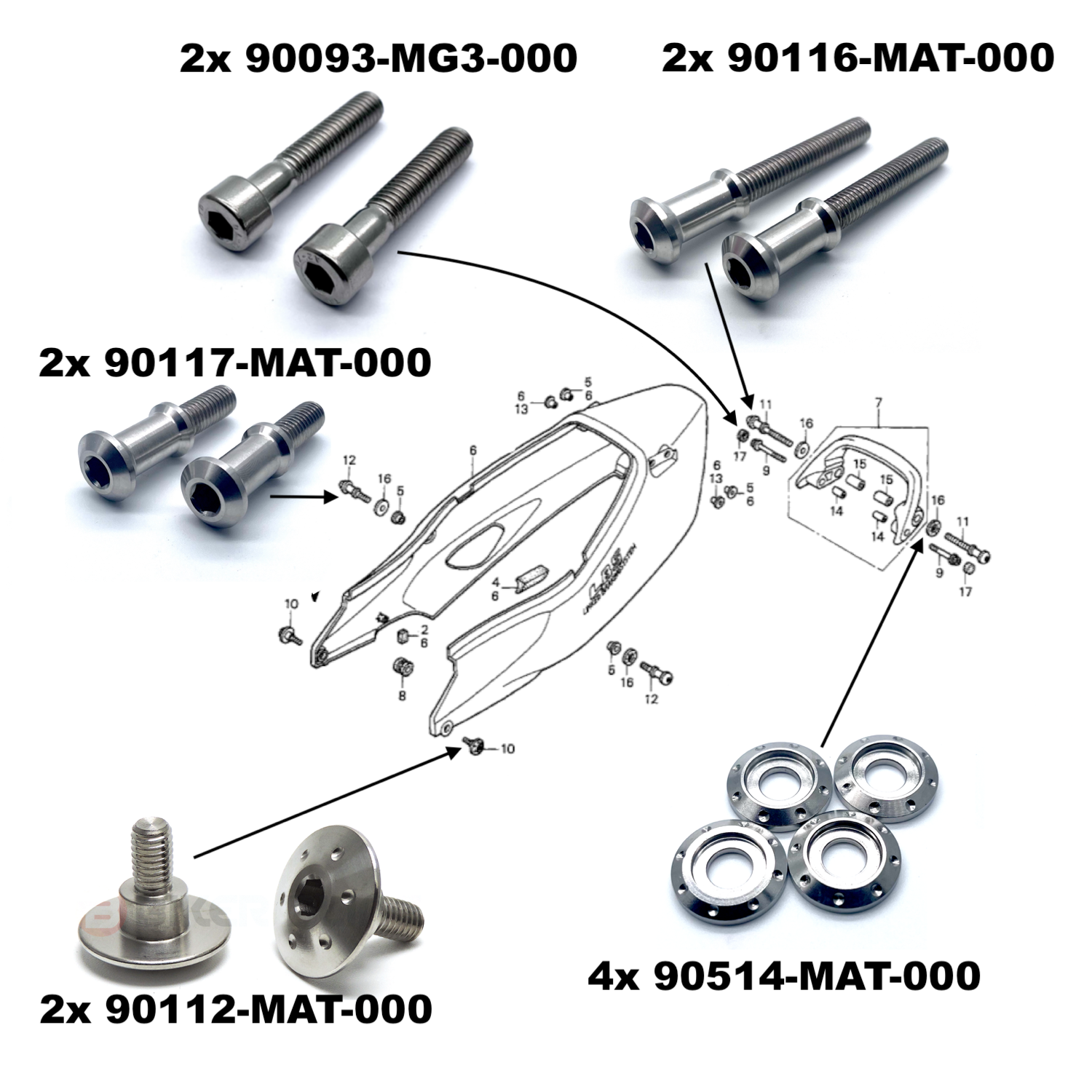

Rear fairing

Component	Kit quantity	Honda reference
Shoulder bolts	2x	90112-MAT-000
Bolts	2x	90093-MG3-000

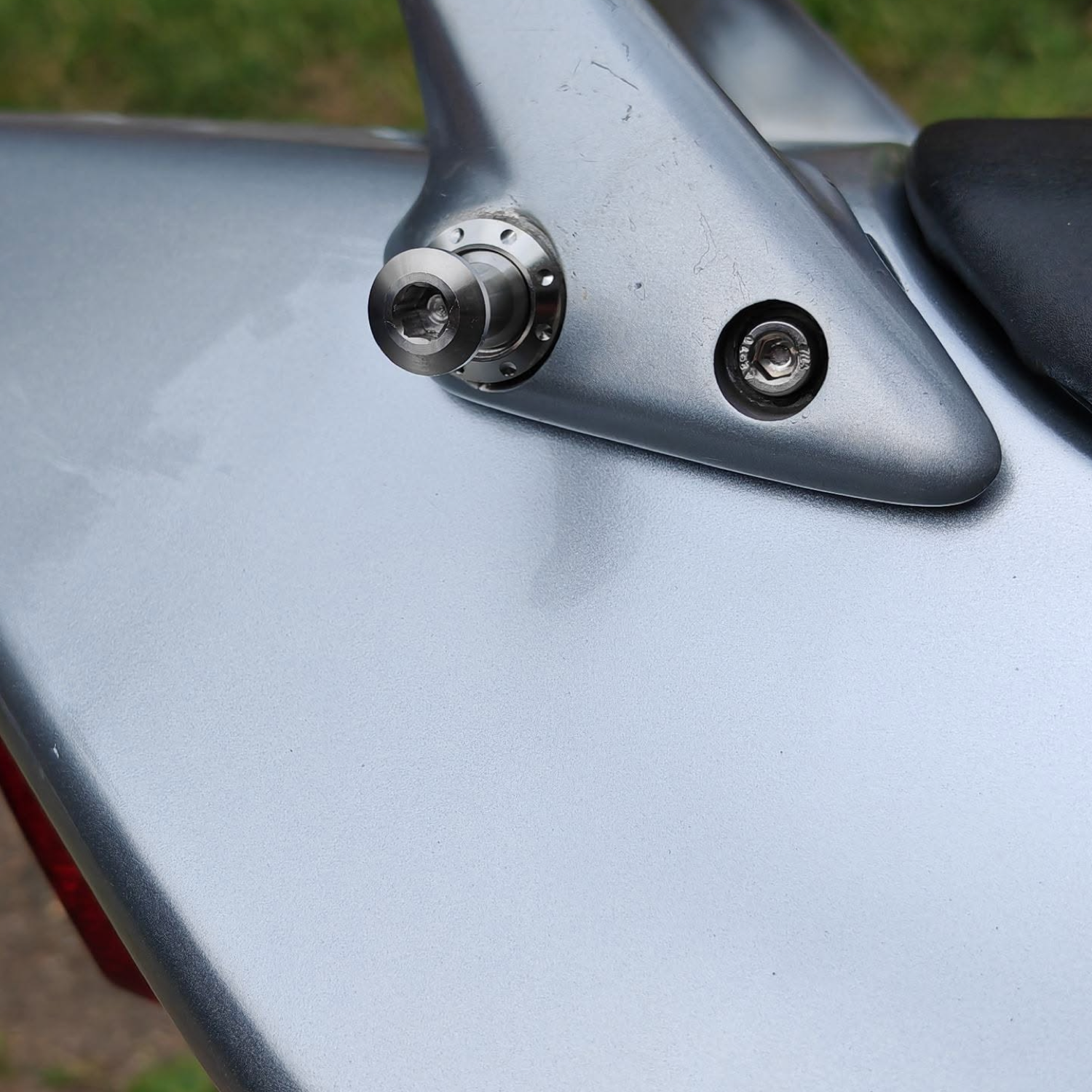

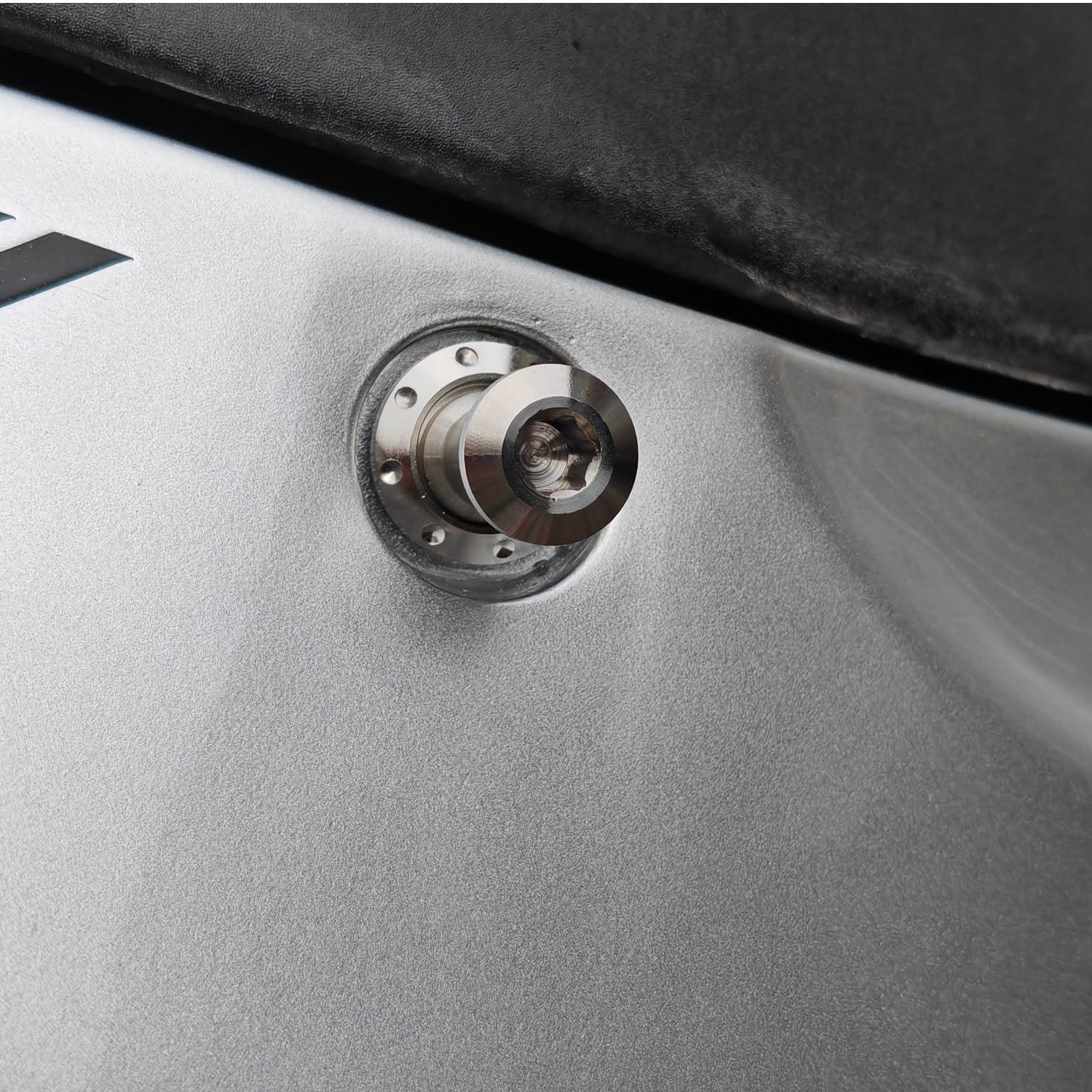

Hook bolts	2x	90117-MAT-000

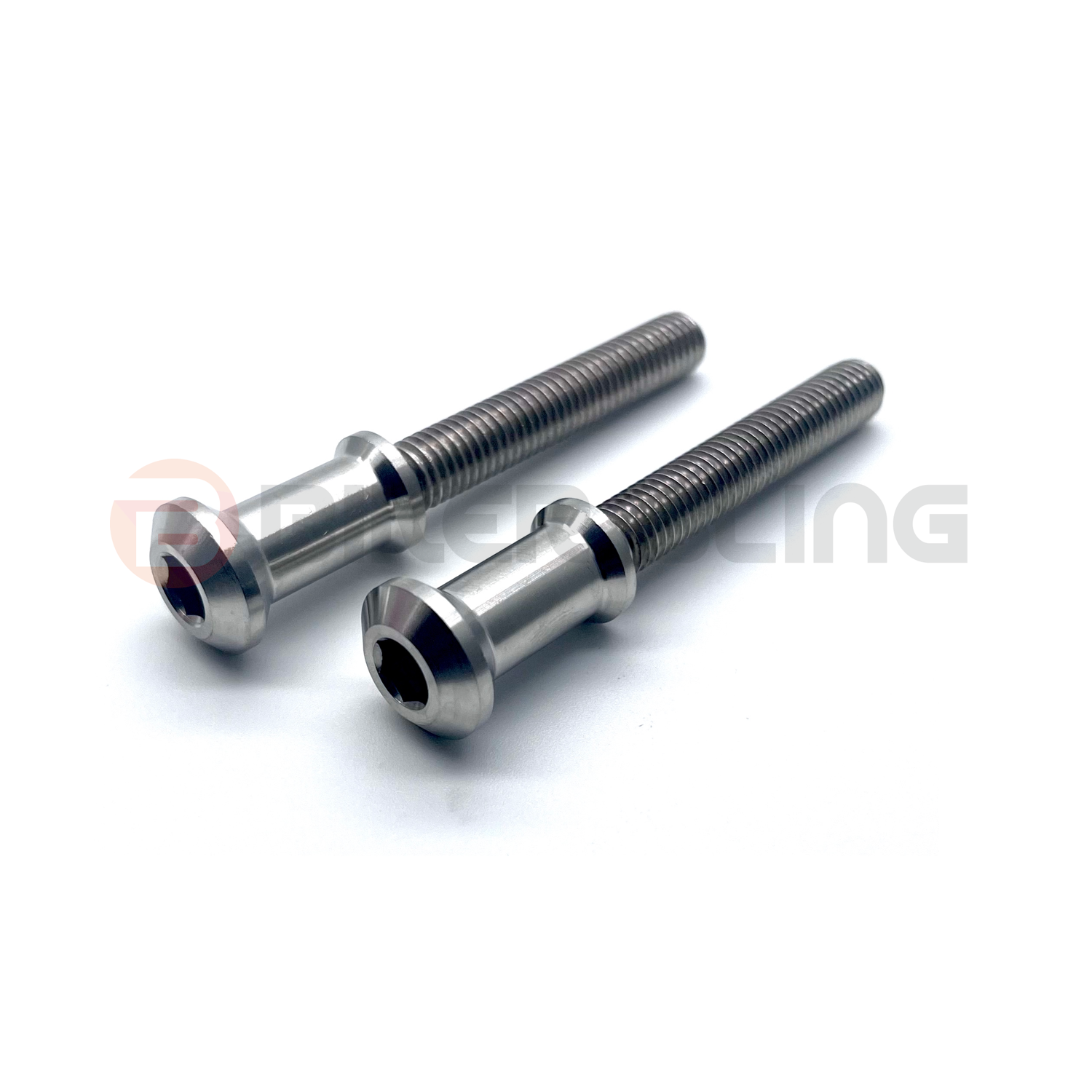

Grab-rail hook bolts	2x	90116-MAT-000
Hook-bolt washers	4x	90514-MAT-000

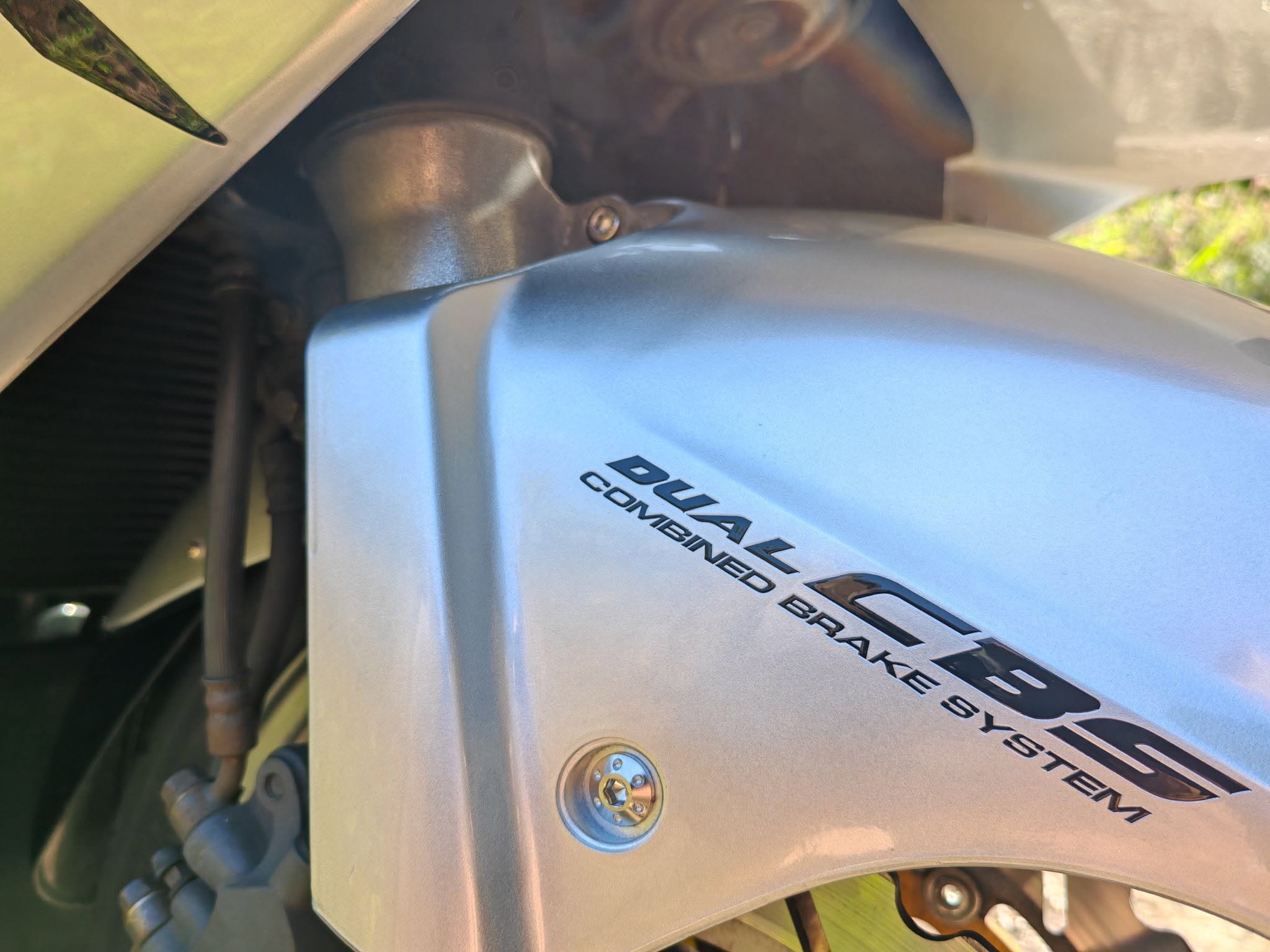

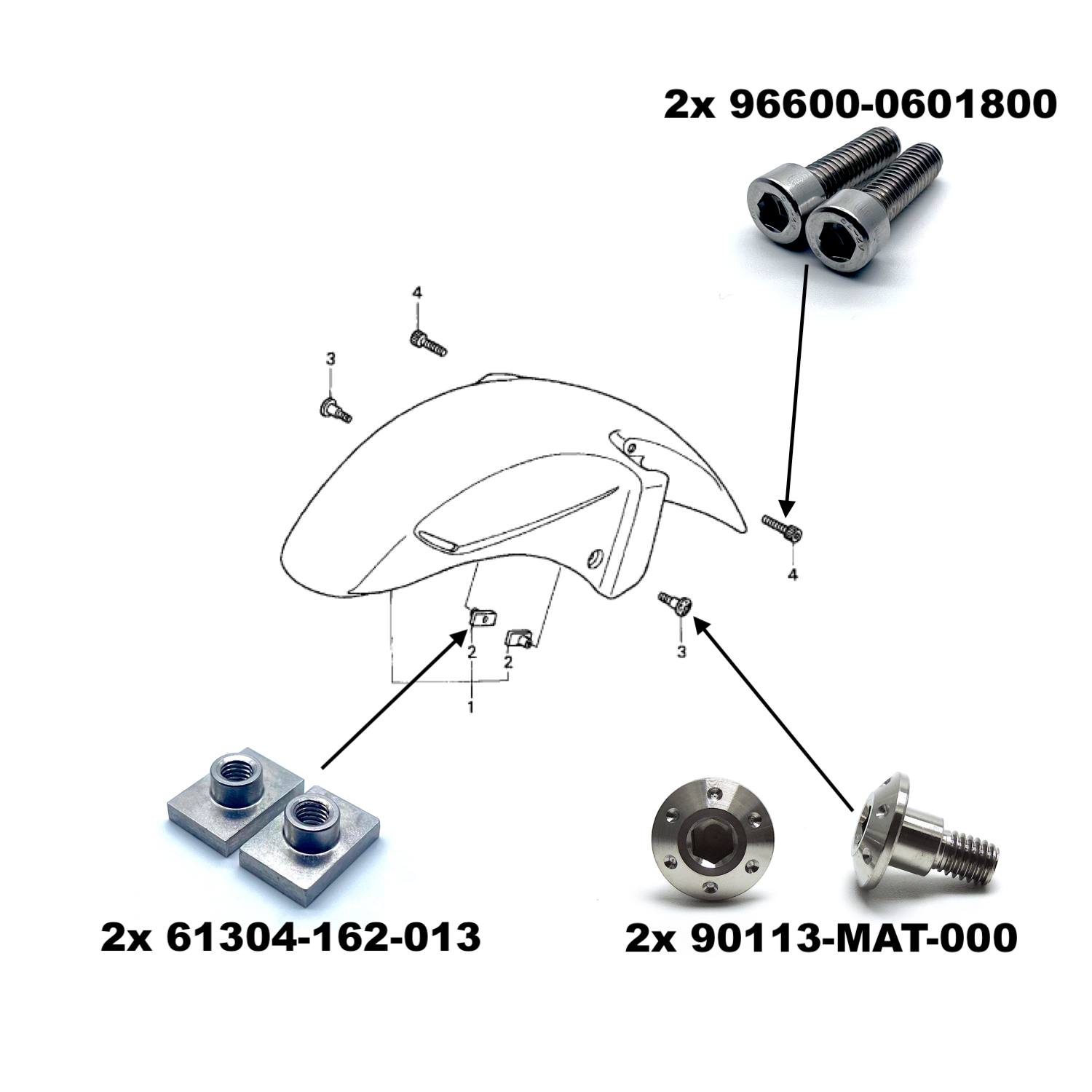

Front mudguard

Component	Kit quantity	Honda reference
Shoulder bolts	2x	90113-MAT-000
Bolts	2x	96600-06018-00
Nuts	2x	61304-162-013

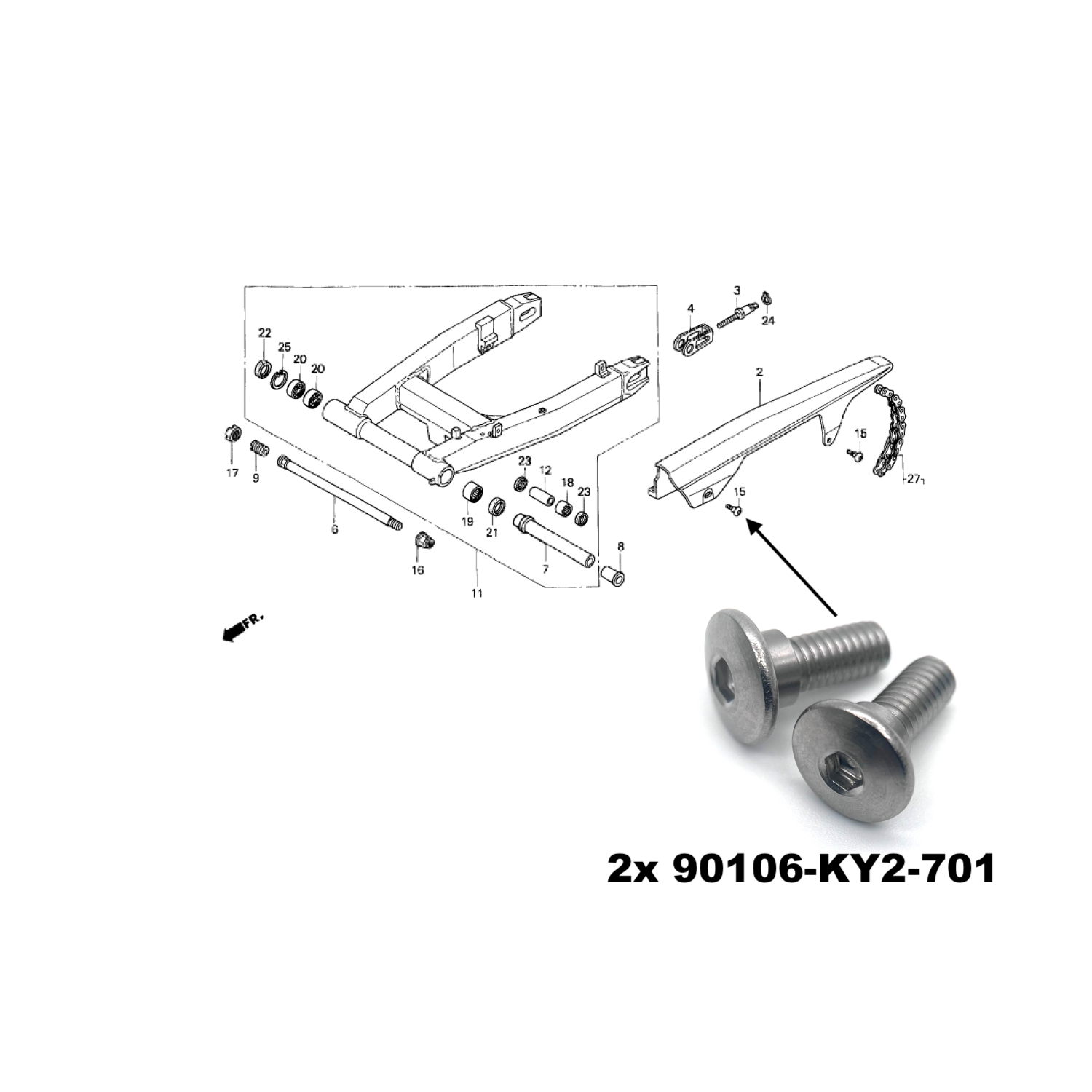

Chain guard

Component	Kit quantity	Honda reference
Shoulder bolts	2x	90106-KY2-701

Also included:

• 1x Biker Bling anti-seize compound pack (7 g).

Important fitment notes

• For Honda CBR1100XX Blackbird 1997–2007 with the original components at the listed positions.
• Check the original reference and fitting arrangement, especially with aftermarket screens, panels or modified components.
• Body panels, windscreen, mudguard, chain guard and motorcycle assemblies are not included. This covers the listed bodywork positions, not engine, brake, suspension or every fixing on the motorcycle.

When should you replace these fixings?

Inspect fixings when removing the relevant component. Replace missing hardware or damaged heads, threads, clips or rubber fittings with the correct type. New fixings cannot repair cracked panels, enlarged holes or damaged mounting threads.

Fitting information

Match each fixing to its intended position and start threaded fasteners by hand. Align the components before tightening; do not use a bolt to pull a misaligned panel into place. Follow Honda’s instructions and avoid overtightening plastic or rubber mountings. Use anti-seize only where the applicable procedure permits it. Check the fitted components are properly seated and secure.

For general background, read our guide to fitting motorcycle fairing bolts. Honda’s workshop procedure takes precedence.

Customer questions

How close are these to the original Honda fairing bolts?

The corresponding bolt dimensions, shoulder length and diameter, head sizes and Allen-key fittings match the originals. The 22 mm and 15 mm-head replacements also retain the dimple detail. They are Biker Bling aftermarket parts, not genuine Honda components.

What should I compare when choosing a Blackbird fairing bolt kit?

Compare the head diameter, dimple detail, shoulder length and diameter, Allen-key fitting, and the nuts and clips supplied for each location. A matching thread size alone does not describe the complete original fixing. The tables above identify the contents of this particular kit.
