Model-specific shouldered fairing bolt kit for Honda VFR800F RC46

This model-specific kit includes shouldered and non-shouldered stainless steel fairing bolts selected to replace the original Honda fixings at their intended mounting positions on the Honda VFR800F RC46 2002–2013. Nylon washers are supplied for the non-shouldered bolts. The hardware is bagged and labelled by fitting area.

Why choose a model-specific shouldered fairing bolt kit?

When comparing motorcycle fairing fasteners for the Honda VFR800F RC46 2002–2013, check shoulder profiles, head styles, fitting locations and the supplied hardware—not just thread size or bolt count. This model-specific stainless steel motorcycle fairing bolt kit includes shouldered and non-shouldered bodywork bolts, with nylon washers for the non-shouldered bolts, plus the replacement clips and well nuts listed in the contents tables. Quantities and Honda references are grouped by fitting area, and the hardware is bagged and labelled by location.

Read our guide to generic vs model-specific motorcycle fairing bolt kits for the differences to check.

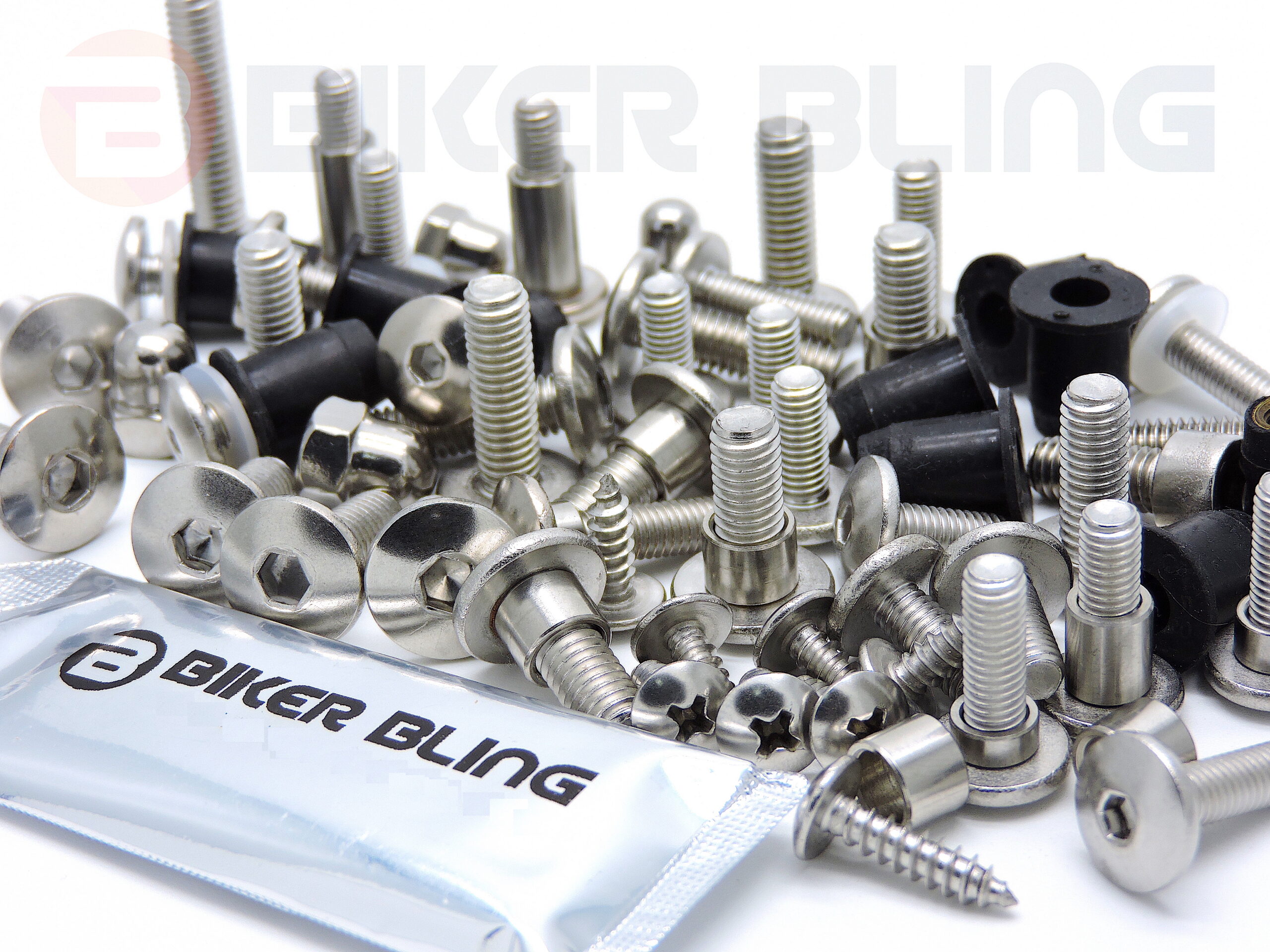

What you receive

• 2002–2005: 35x stainless steel replacement bolts — 13x shouldered and 22x non-shouldered.
• 2006–2013: 37x stainless steel replacement bolts — 13x shouldered and 24x non-shouldered, including the two additional chain-guard fixings.
• 16x rubber well nuts.
• 8x plastic rivets.
• 6x plastic clips.
• 2002–2005: 22x nylon washers. 2006–2013: 24x nylon washers — one for each non-shouldered bolt. Shoulder bolts do not require washers.
• 1x Biker Bling anti-seize compound pack (7 g).

The fasteners are bagged and labelled by fitting area. The tables below identify the replacement components and the original Honda fixing references for those positions. Honda references are cross-references, not Biker Bling product codes or genuine Honda parts supplied in this kit.

Windscreen internal fixings

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Windscreen internal fixings — bolts	4x	Non-shouldered bolt	90103-MBG-000
Windscreen internal fixings — rubber well nuts	4x	Rubber well nut	90111-KW3-003

Mirrors

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Mirrors — bolts	4x	Non-shouldered bolt	96600-06016-00 / 96001-06016-00

Nose cone

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Nose cone — bolts	2x	Non-shouldered bolt	93500-05012-0G
Nose cone — bolts	4x	Non-shouldered bolt	90103-MBG-000
Nose cone — rubber well nuts	4x	Rubber well nut	90111-KW3-003
Nose cone — plastic rivets	8x	Plastic rivet	90683-GAZ-003

Side fairings

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Side fairings — bolts	4x	Non-shouldered bolt	90113-MCJ-000
Side fairings — bolts	2x	Non-shouldered bolt	90103-MBG-000
Side fairings — bolts	5x	Shouldered bolt	90106-MCW-D00
Side fairings — rubber well nuts	6x	Rubber well nut	90111-KW3-003
Side fairings — plastic clips	6x	Plastic clip	90683-GAZ-003

Rear panels

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Rear panels — bolts	2x	Non-shouldered bolt	90113-MCJ-000
Rear panels — bolts	2x	Shouldered bolt	90106-MCW-D00
Rear panels — rubber well nuts	2x	Rubber well nut	90111-KW3-003

Front mudguard

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Front mudguard — bolts	4x	Shouldered bolt	90106-KCZ-000

Chain guard

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Chain guard — all model years	2x	Shouldered bolt	90106-KY2-701
Chain guard — additional bolts for 2006–2013 only	2x	Non-shouldered bolt	96001-06025-07

The four mirror bolts replace original Honda reference 96600-06016-00 for 2002–2004 or 96001-06016-00 for 2005–2013. These are year-specific references for four supplied bolts, not eight. All model years use 2x shouldered chain-guard bolts replacing 90106-KY2-701. Models from 2006–2013 also use 2x non-shouldered bolts replacing 96001-06025-07; these additional bolts do not apply to 2002–2005.

Important fitment notes

• Compatibility: For the listed original bodywork fixing positions on the Honda VFR800F RC46 2002–2013. Check altered brackets and aftermarket panels before fitting.
• Materials: Replacement bolts and self-tapping fasteners are stainless steel. Rubber well nuts, plastic fittings and nylon washers retain their respective materials; they are not stainless steel.
• Head style: Replacement heads may differ from Honda’s originals. Use the labelled hardware for its intended position rather than treating every bolt as interchangeable.
• Kit scope: The supplied fixing positions are itemised above. Body panels, screens, mirrors, mudguards and motorcycle assemblies are not included.

When should you replace fairing fixings?

• Damaged heads or threads: Renew hardware that cannot be removed or tightened correctly.
• Missing or worn fittings: Check the panel mounting point and its supporting hardware before selecting a replacement.
• During bodywork servicing: Inspect fasteners and plastic mounting tabs when panels are removed.

Replacement hardware cannot repair cracked panels, broken tabs or stripped mounting points. Inspect a loose or rattling panel to identify the cause.

Fitting the fairing bolt kit

Support each panel, align the mounting holes and start threaded fasteners by hand. Match each labelled bag to the relevant fitting area and follow Honda’s instructions for the original assembly. Avoid overtightening plastic panels or using a bolt to pull misaligned parts together. Use anti-seize only where appropriate and in accordance with the applicable fitting instructions.

Read our guide to fitting motorcycle fairing bolts without damaging plastic panels for general guidance.

Customer questions

Is this a genuine Honda bolt kit?

No. It contains aftermarket replacement hardware selected for the listed fitting positions. The Honda numbers identify the original components.

Will it fit aftermarket fairings?

Check the panel manufacturer’s mounting requirements. Replacement panels or brackets may need a different fixing arrangement.

Does this kit include shouldered fairing bolts for the VFR800F RC46?

Yes. Both year groups include 13x shouldered bolts. The 2002–2005 allocation includes 22x non-shouldered bolts; 2006–2013 includes 24x, accounting for the two additional chain-guard bolts.

Are nylon washers supplied for every bolt?

The 2002–2005 allocation includes 22x nylon washers; 2006–2013 includes 24x nylon washers. These accompany the non-shouldered bolts. The shouldered bolts do not require additional nylon washers in this kit.

What should I compare with a universal fairing bolt assortment?

Check the shoulder profile, head style, intended mounting position and associated fittings. Matching a thread alone does not establish that a bolt suits the original panel mounting arrangement. This kit identifies its supplied hardware by location and original Honda reference.
