Model-specific fairing bolt kit for Honda CB500F

This model-specific kit includes shouldered and non-shouldered stainless steel fairing bolts selected to replace the original Honda fixings at their intended mounting positions on the Honda CB500F 2016–2018. Nylon washers are supplied for the non-shouldered bolts. The kit covers the listed headlight fairing, clock panel, front and middle side fairings, rear panels, front mudguard and chain guard.

What you receive

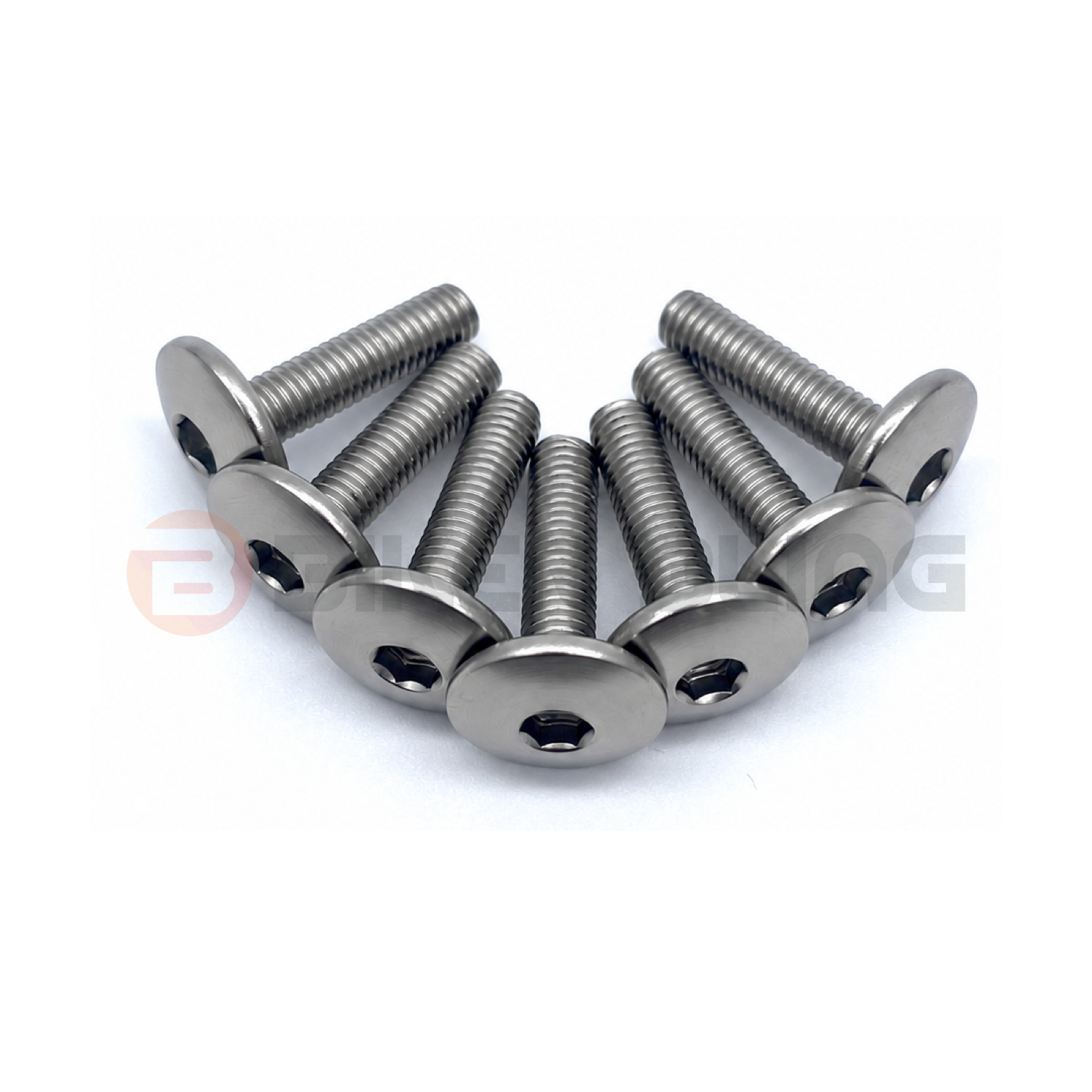

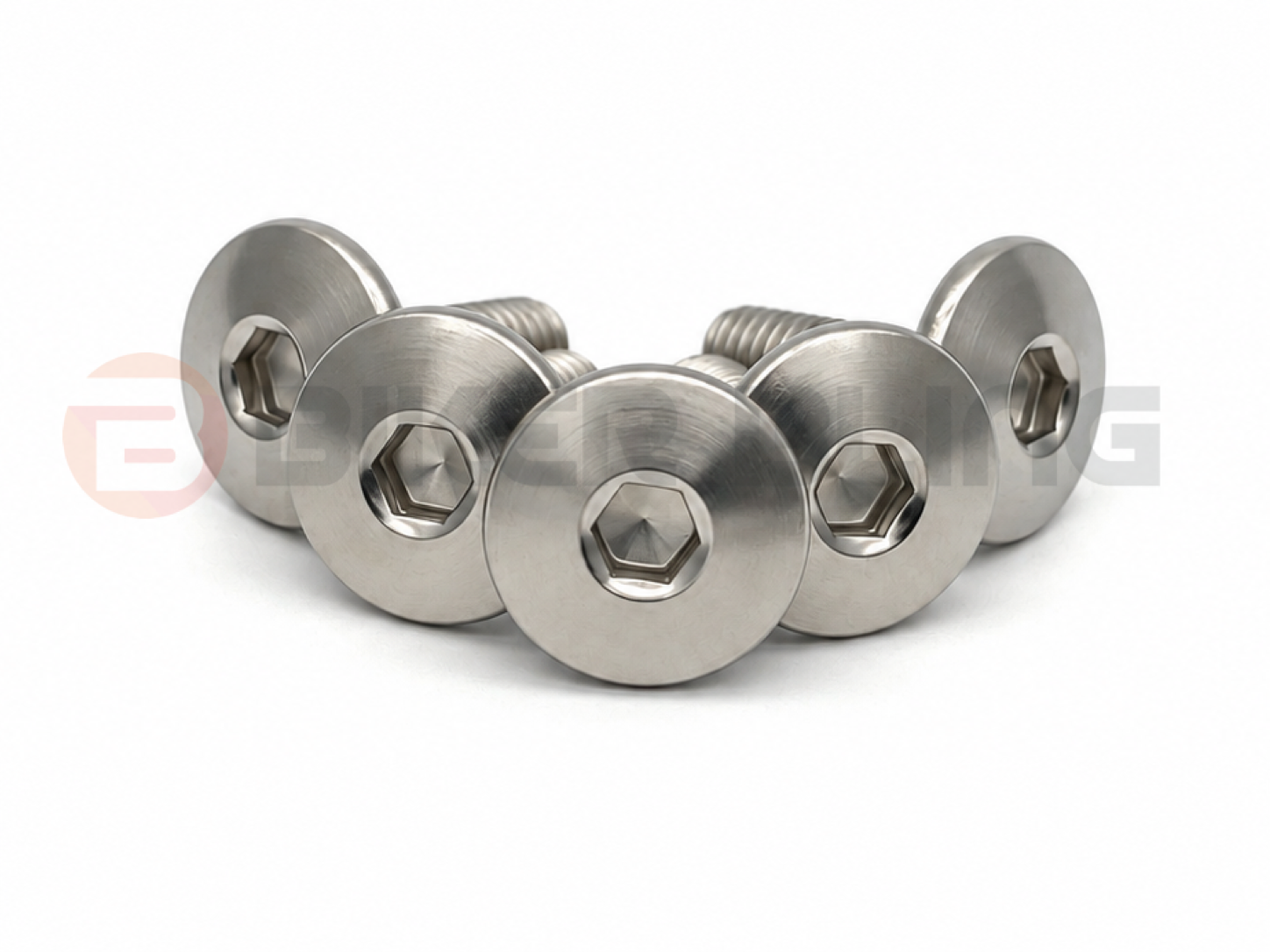

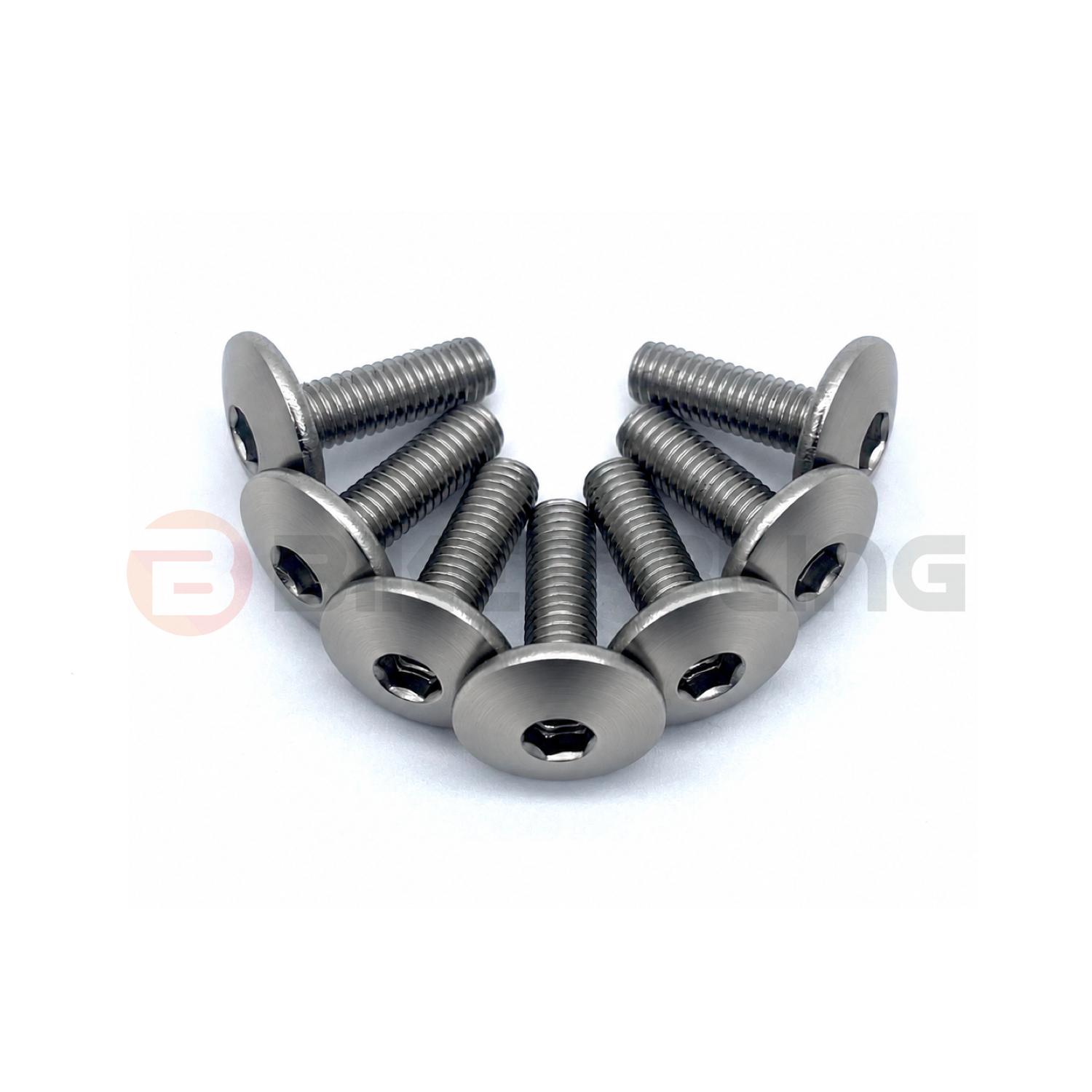

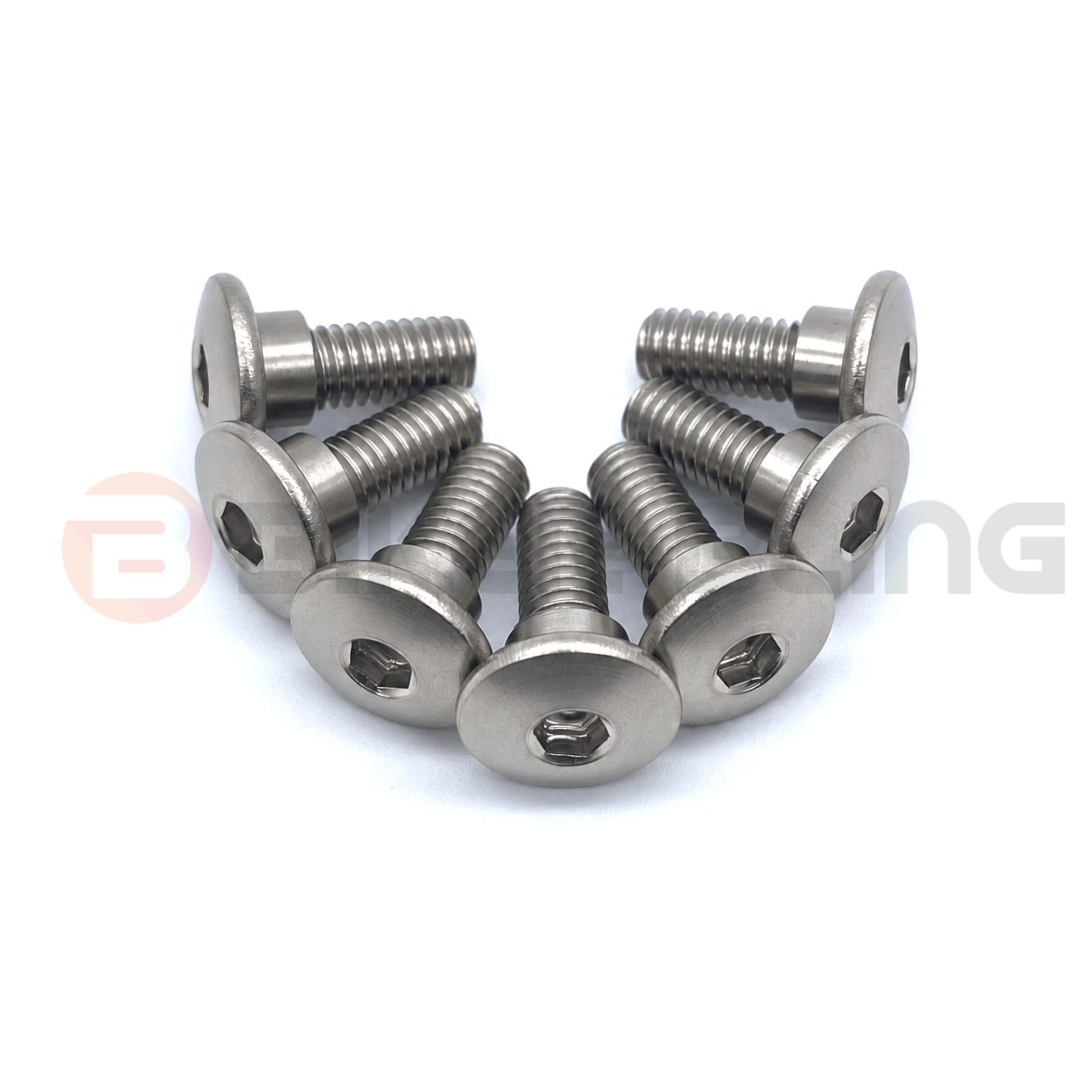

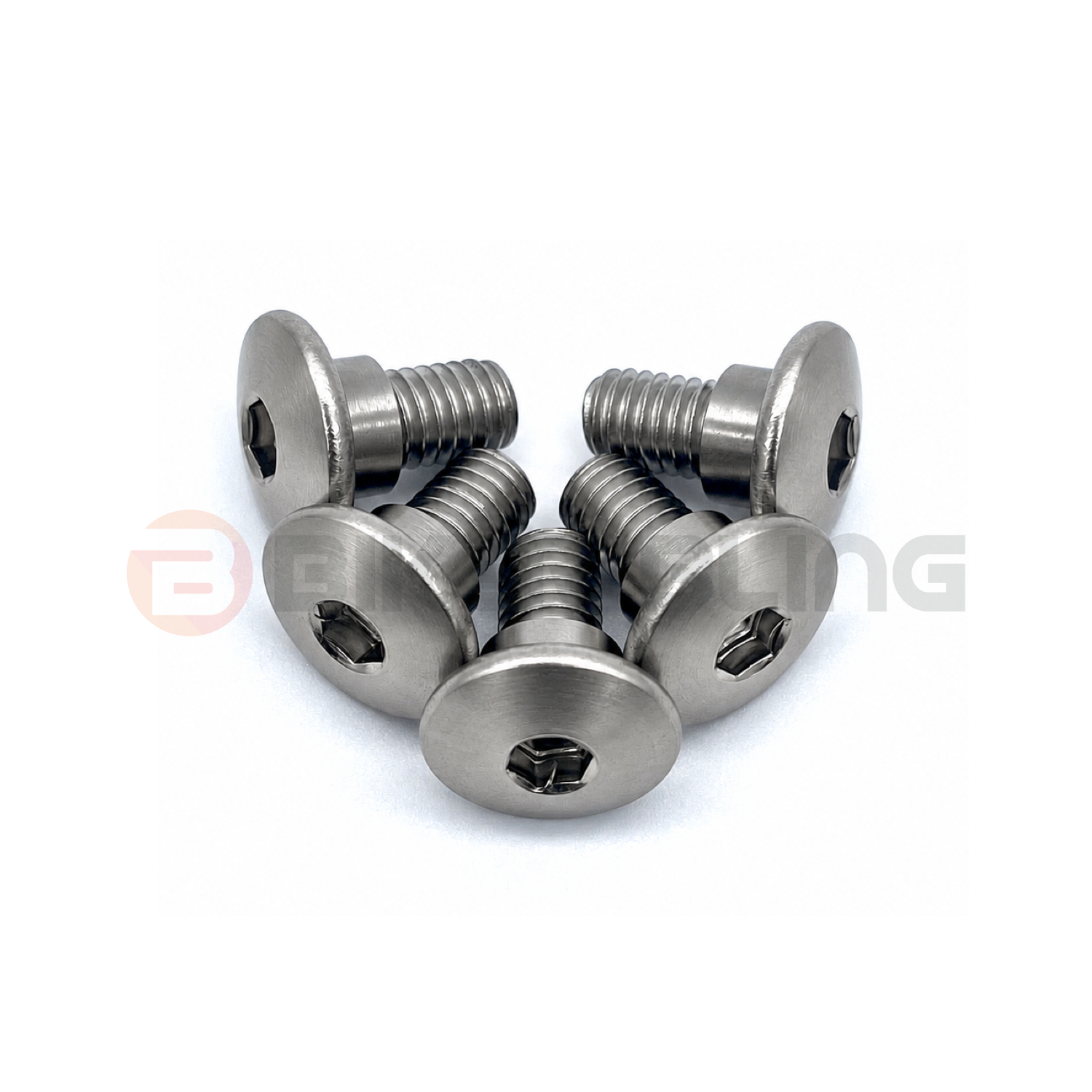

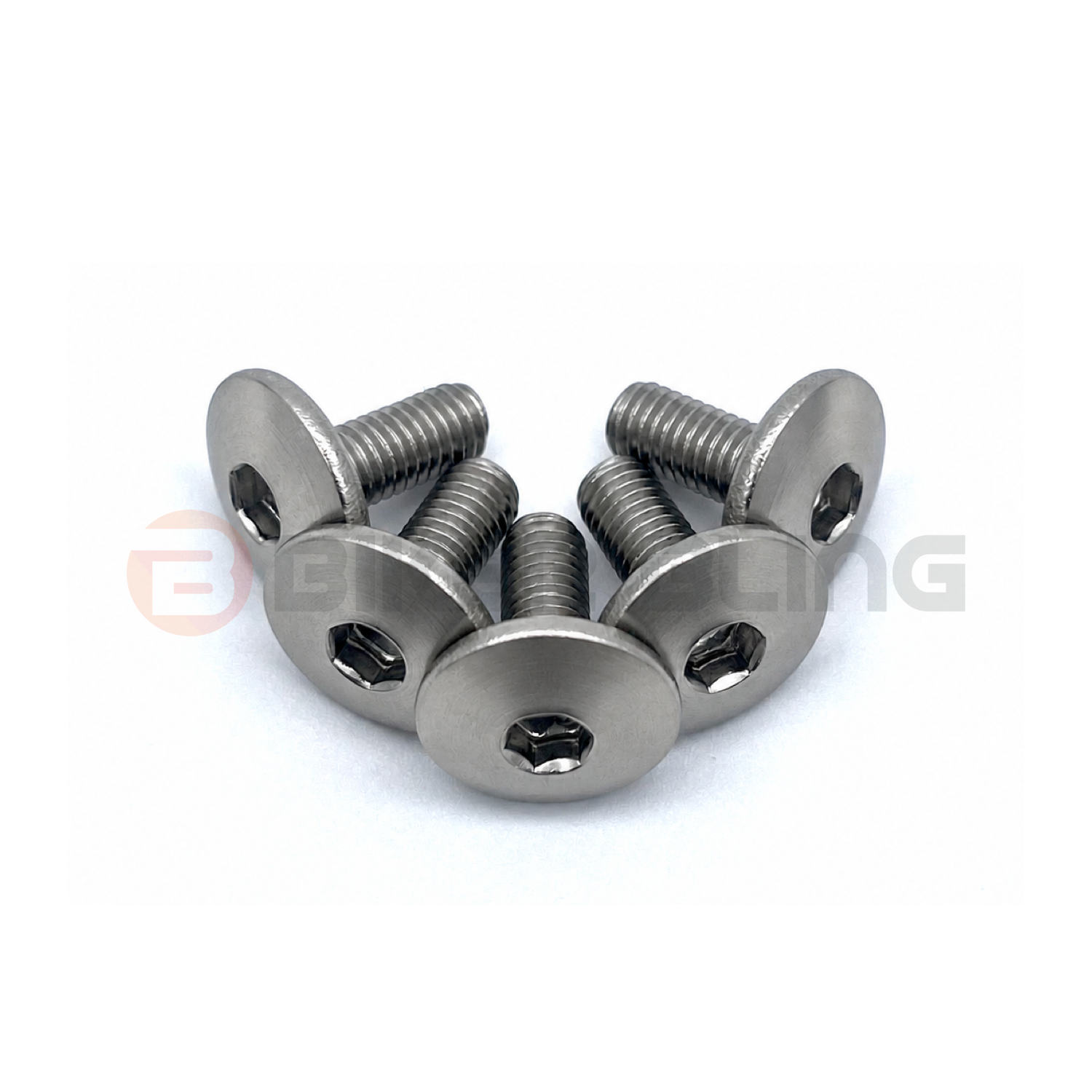

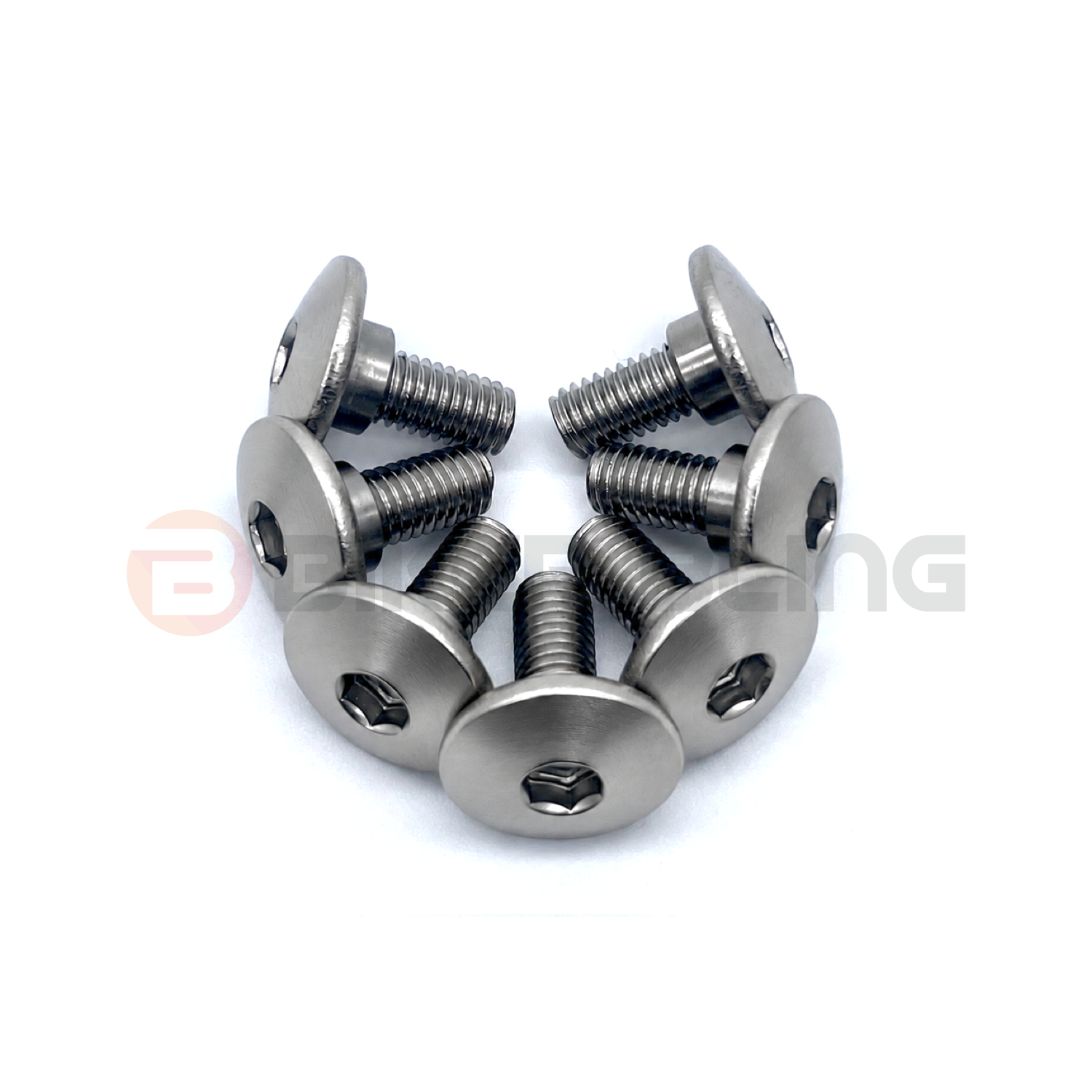

• 22x stainless steel bolts: 12x shouldered and 10x non-shouldered.

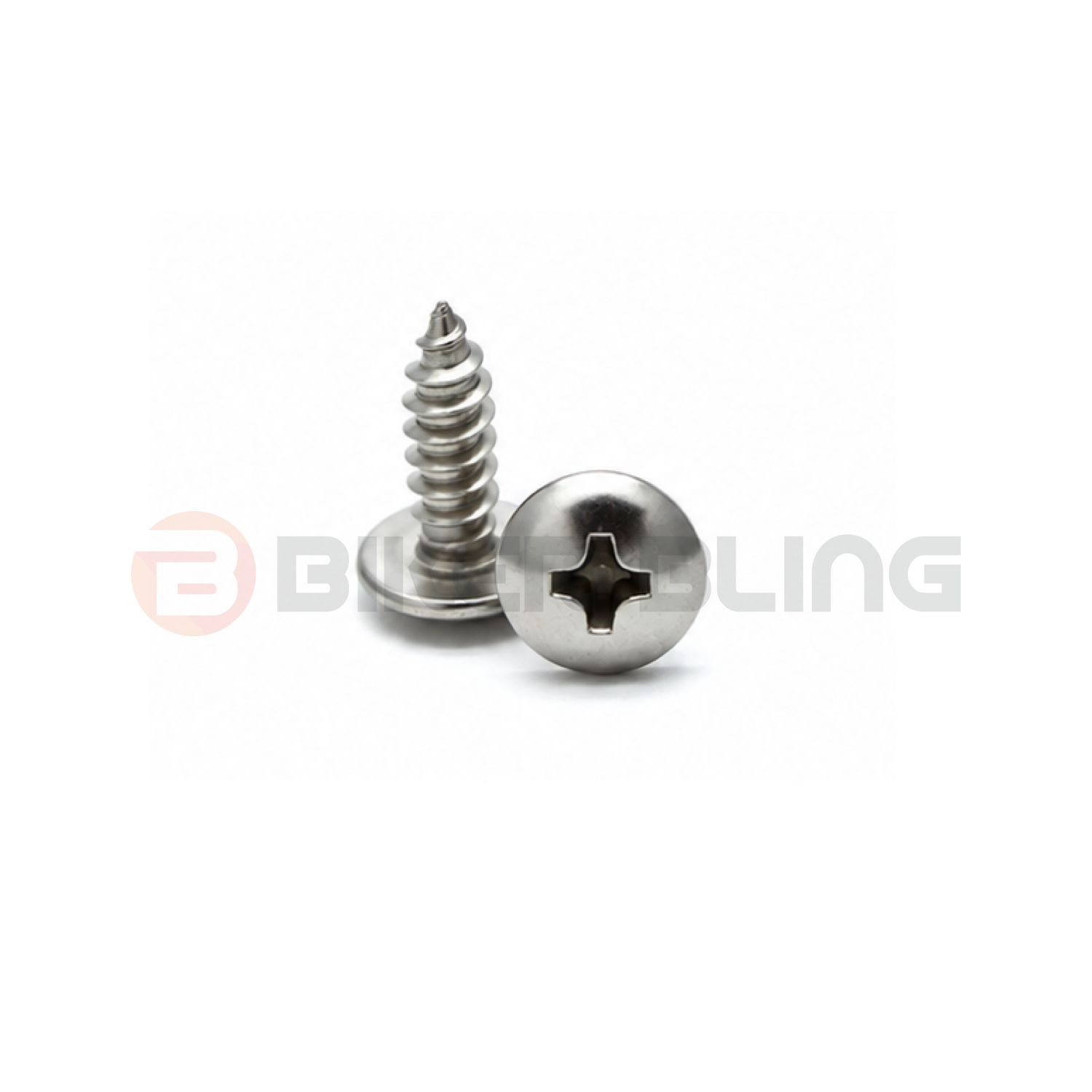

• 22x self-tapping screws.
• 9x plastic push clips.
• 2x rubber well nuts.
• 10x nylon washers for the non-shouldered bolts.
• 1x Biker Bling anti-seize compound pack (7 g).

The hardware is bagged and labelled by fitting location.

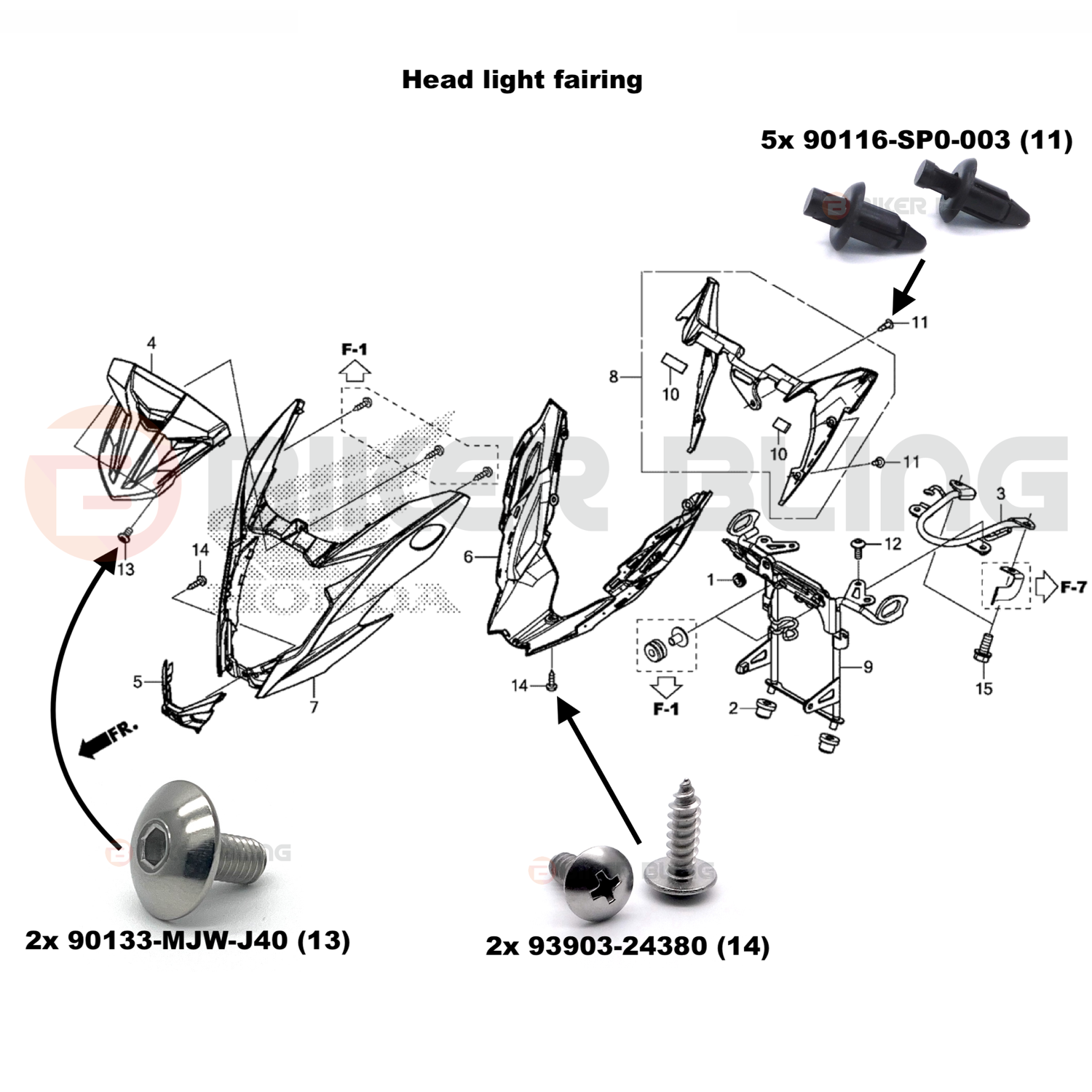

Headlight fairing

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Headlight fairing	2x	Non-shouldered bolt	90133-MJW-J40
Headlight fairing	2x	Self-tapping screw	93903-24380

Clock panel

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference

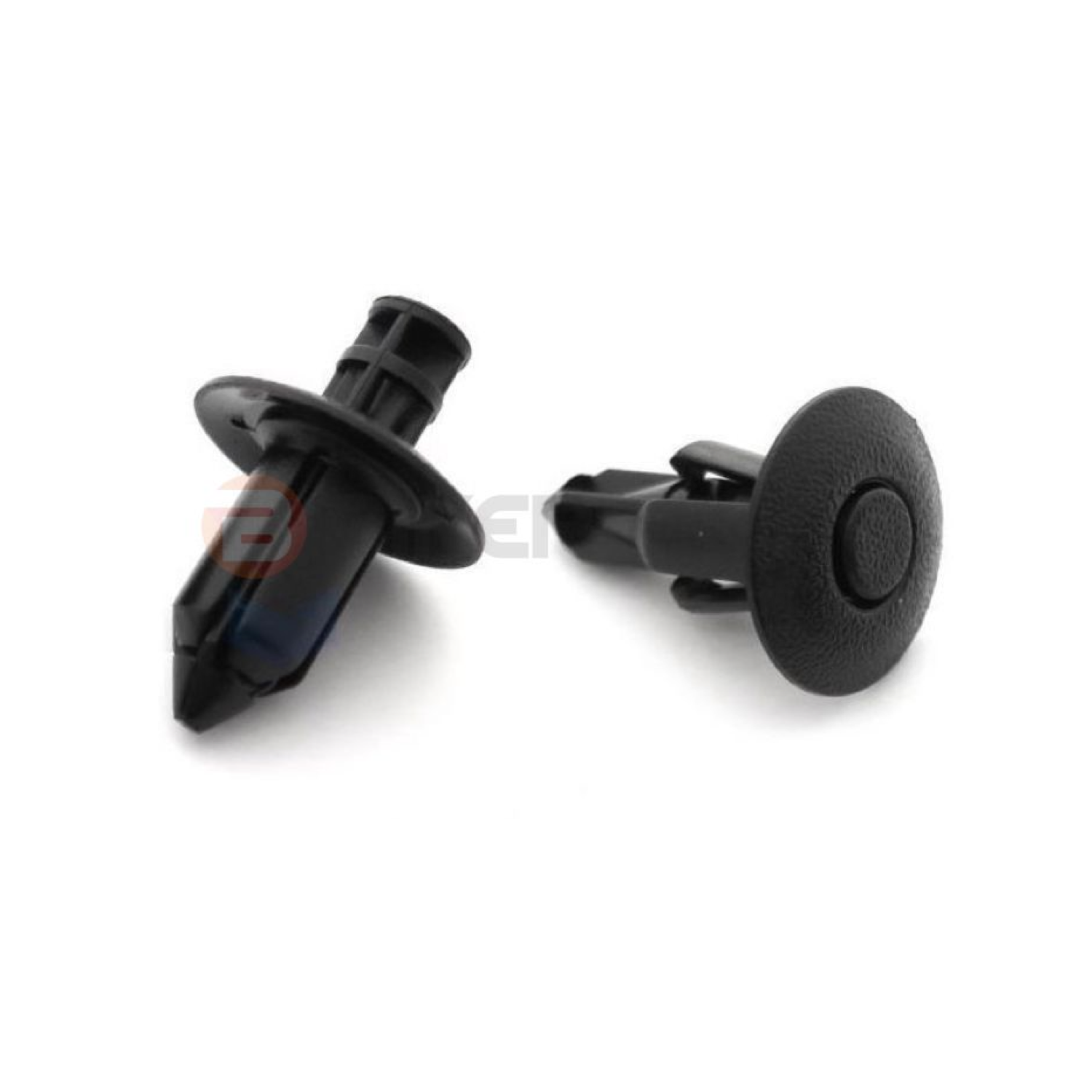

Clock panel	5x	Plastic push clip	90116-SP0-003

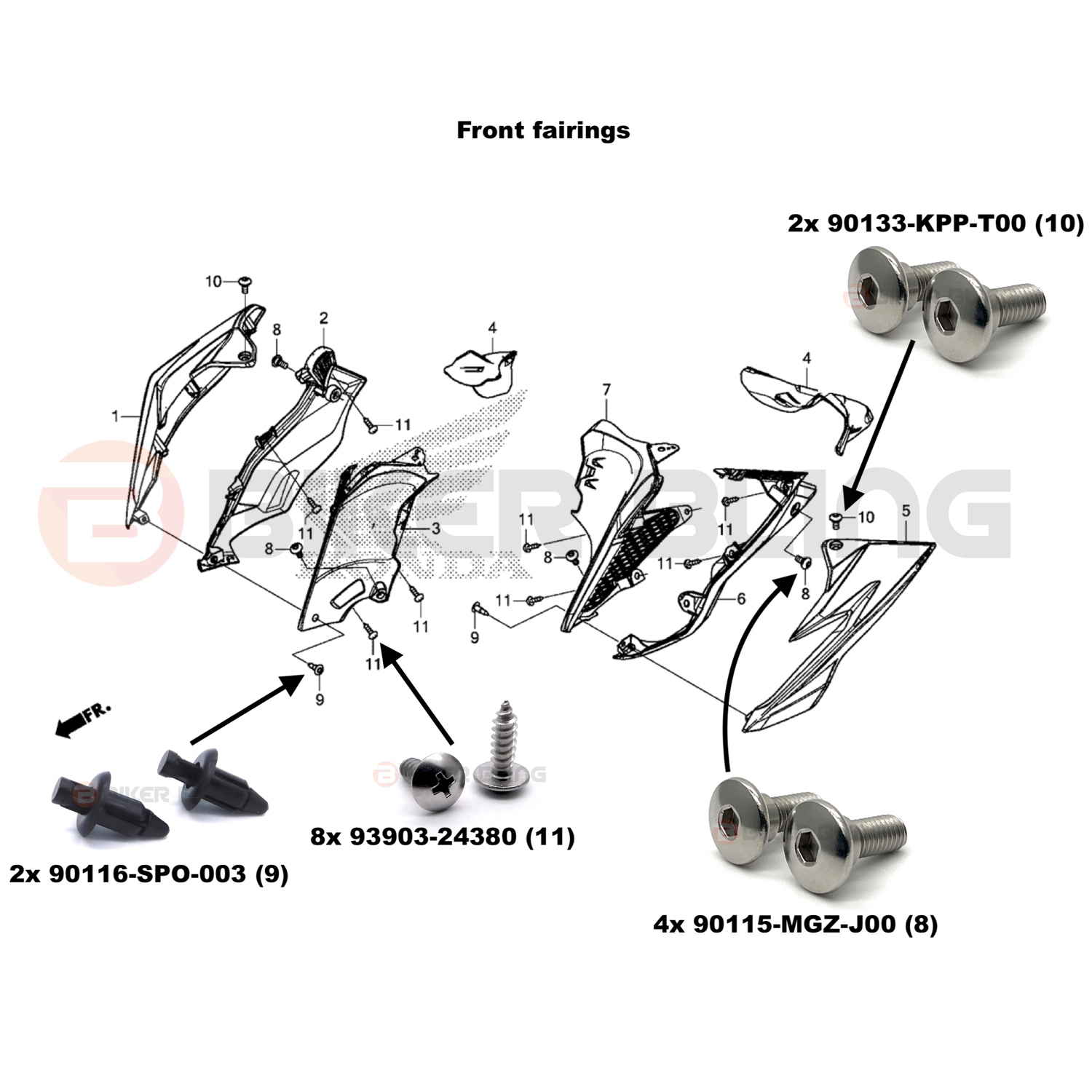

Front side fairings

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Front side fairings	4x	Shouldered bolt	90115-MGZ-J00
Front side fairings	2x	Shouldered bolt	90133-KPP-T00
Front side fairings	8x	Self-tapping screw	93903-24380
Front side fairings	2x	Plastic push clip	90116-SP0-003

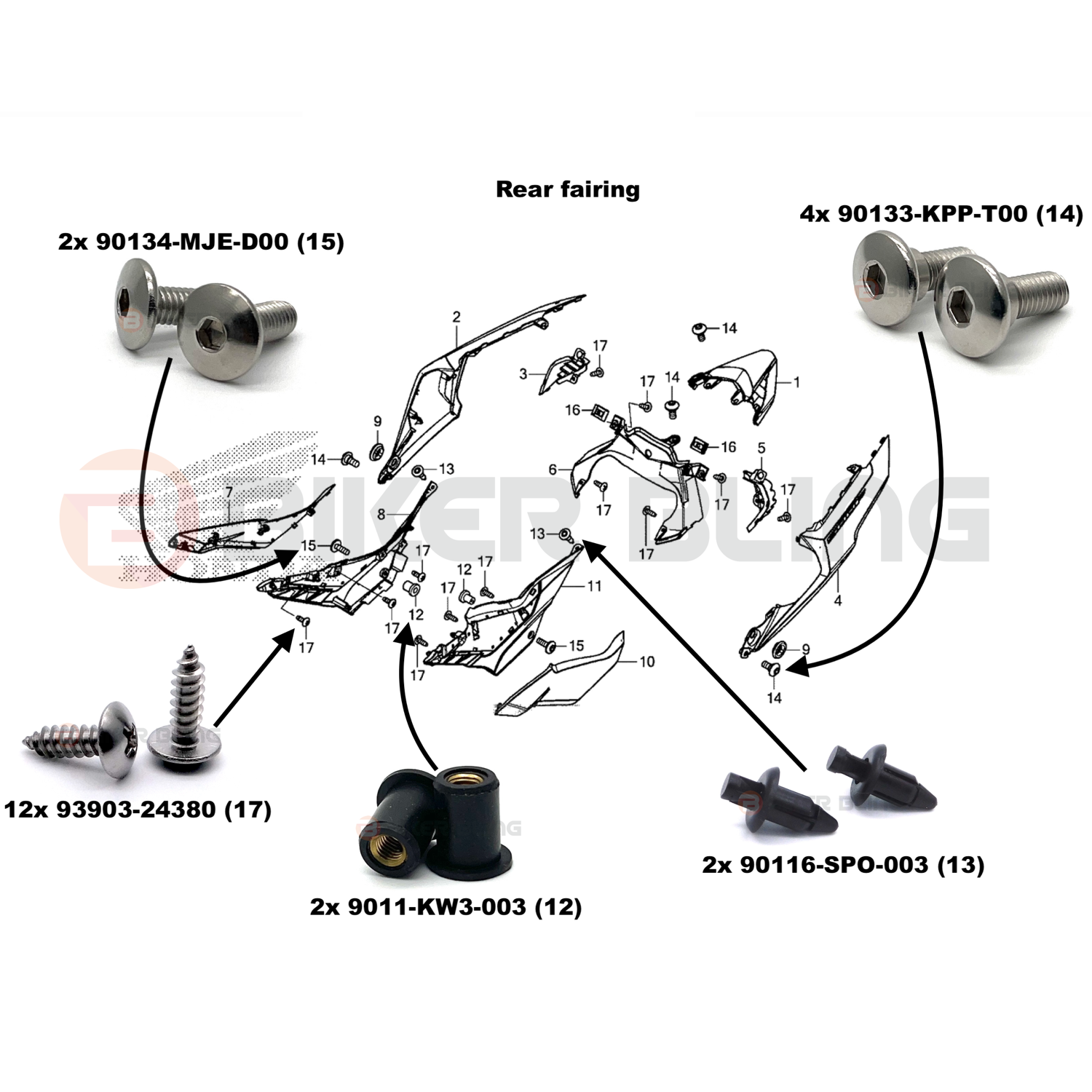

Middle side fairings

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Middle side fairings	2x	Non-shouldered bolt	90134-MJE-D00
Middle side fairings	2x	Rubber well nut	90111-KW3-003
Middle side fairings	2x	Plastic push clip	90116-SP0-003
Middle side fairings	6x	Self-tapping screw	93903-24380

Rear panels

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Rear panels	4x	Shouldered bolt	90133-KPP-T00
Rear panels	6x	Self-tapping screw	93903-24380

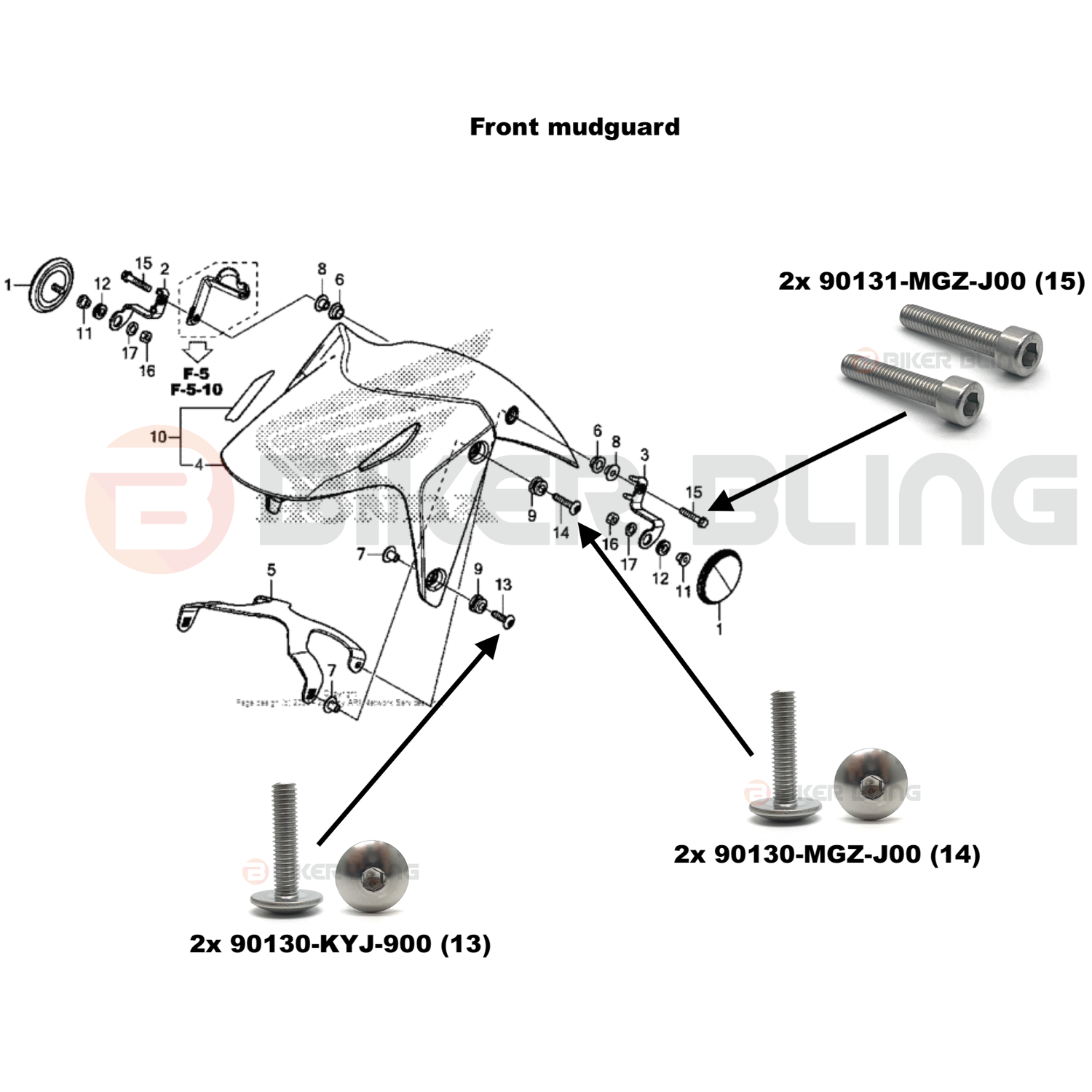

Front mudguard

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Front mudguard	2x	Non-shouldered bolt	90130-KYJ-900
Front mudguard	2x	Non-shouldered bolt	90130-MGZ-J00
Front mudguard	2x	Non-shouldered bolt	90131-MGZ-J00

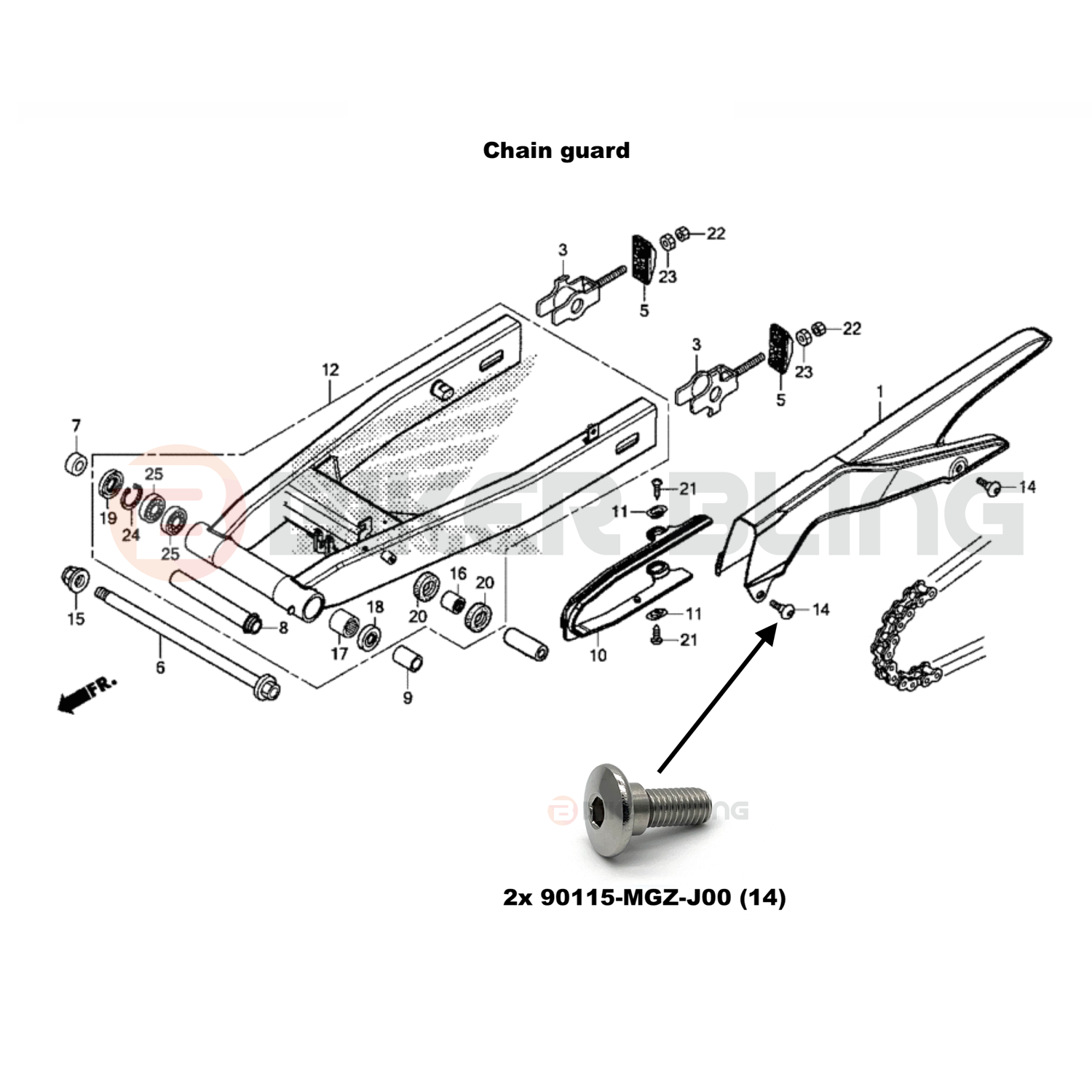

Chain guard

Fitting position / component	Supplied quantity	Component type	Original Honda fixing reference
Chain guard	2x	Shouldered bolt	90115-MGZ-J00

Honda references identify the original components replaced at the listed fitting positions. These are aftermarket replacement parts, not genuine Honda-branded hardware. Repeated references in separate fitting areas describe separate supplied quantities.

Why choose a model-specific CB500F fairing bolt kit?

When comparing motorcycle fairing bolt kits, check shoulder profiles, head styles, fitting locations and supplied hardware as well as thread size. This CB500F bodywork bolt kit groups the motorcycle fairing fasteners by mounting area and identifies the shouldered and non-shouldered replacements alongside their Honda references. Nylon washers accompany the non-shouldered bolts; replacement motorcycle clips and well nuts are supplied for the listed positions. Read our guide to generic and model-specific motorcycle bolt kits.

Important fitment notes

• For Honda CB500F model years 2016, 2017 and 2018 with the original mounting arrangement appropriate to the supplied fixings.
• Check replacement bodywork and modified mounting points against the intended fasteners before fitting.
• Body panels, the front mudguard and chain guard themselves are not supplied.
• The stainless steel description applies to the replacement bolts. Clips, rubber well nuts and nylon washers are made from their respective materials.

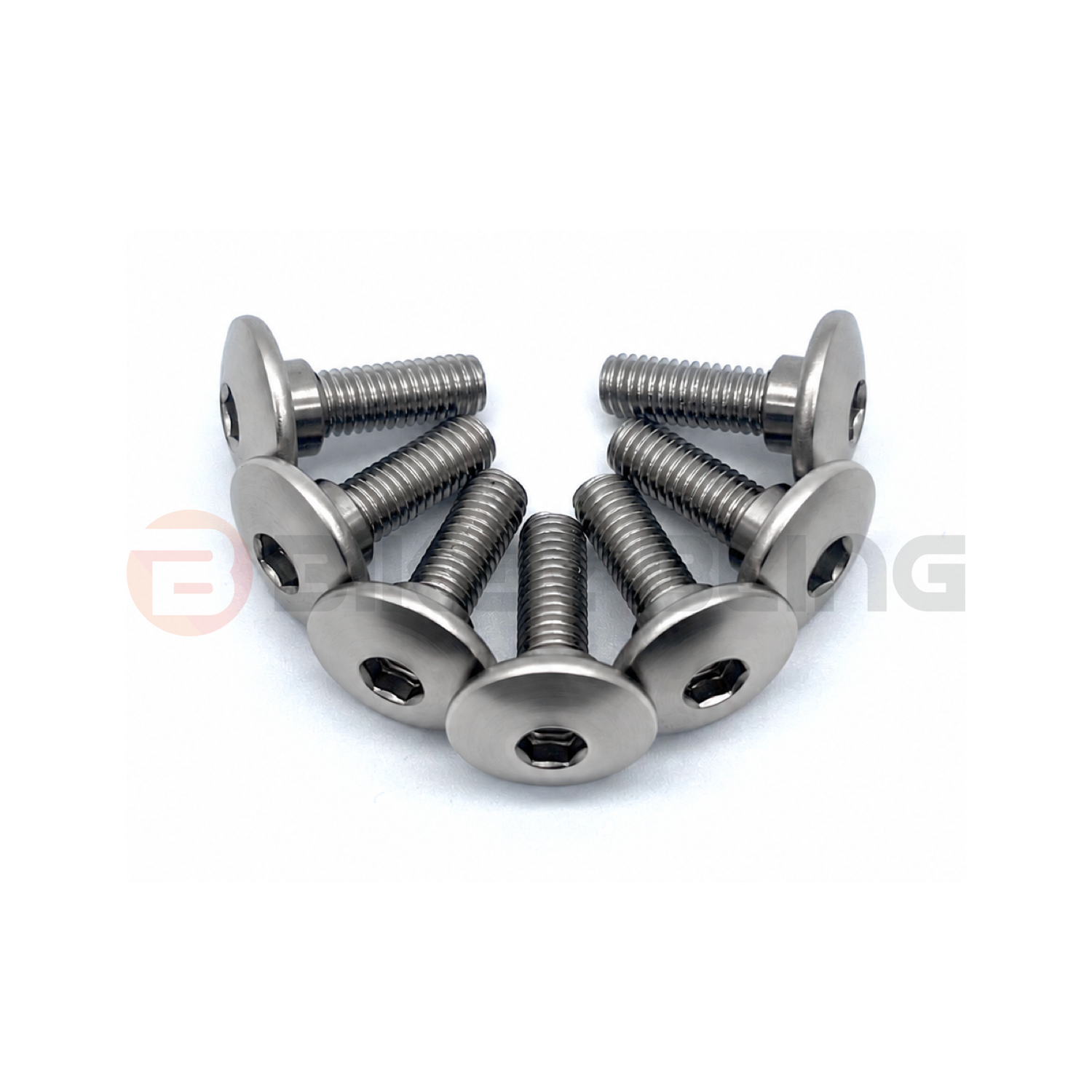

• Photographs may illustrate the fastener style; the tables define the supplied quantities.

Fitting the fairing bolts

Match each bag to its labelled mounting area. Check that panels and mounting points are undamaged and aligned, start bolts by hand and avoid overtightening plastic bodywork. Fit nylon washers with the non-shouldered bolts. Follow Honda’s tightening and thread-treatment instructions and use anti-seize only where appropriate. Our motorcycle fairing bolt fitting guide provides general fitting advice.

Customer questions

Does this kit include shouldered fairing bolts?

Yes. It supplies 12x shouldered and 10x non-shouldered stainless steel bolts for the fitting positions shown in the tables.

Are plastic clips and well nuts included?

Yes. The kit includes 9x plastic push clips and 2x rubber well nuts, allocated to the listed panel positions.

Is matching the bolt thread enough?

Check the shoulder profile, head style and mounting arrangement too. Matching thread size alone does not establish suitability for a particular bodywork fixing.
